Control Module/Digital Sound System Amplifier, Removing And Installing: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the floor mat from the vehicle.
The cover must be removed first.

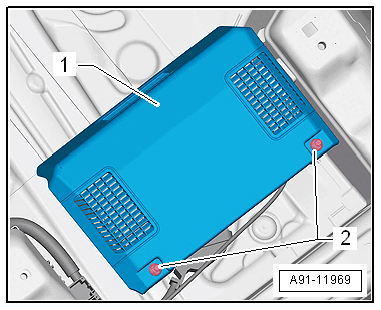

-- Remove the expanding rivets -2- and then the cover -1-.

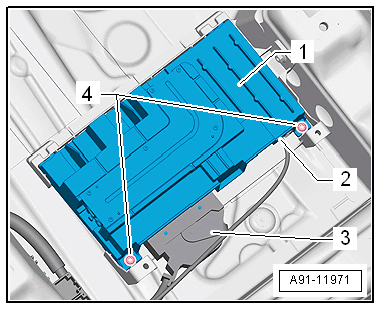

-- Release and disconnect the connector -2- from the Digital Sound System Control Module -J525- -1-.
-- Insert the : VAS6223/9 -1- onto the MOST bus connector -2-.
-- Release and disconnect the connector -3- from the Digital Sound System Control Module -J525- -1-.
-- Remove the screws -4- and pivot the Digital Sound System Control Module -J525- -1- out of the bracket.
