Transmission Identification
Code Letters, Location on Transmission

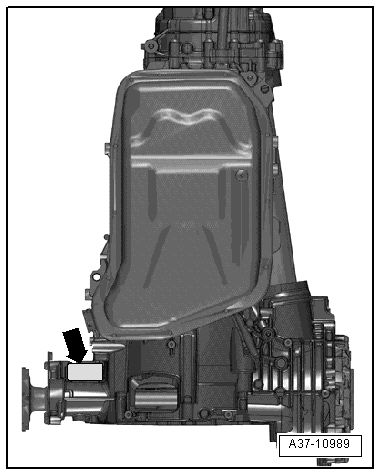

- Transmission code letters are located on the data plate under the transmission. Type plate installed location -arrow-.

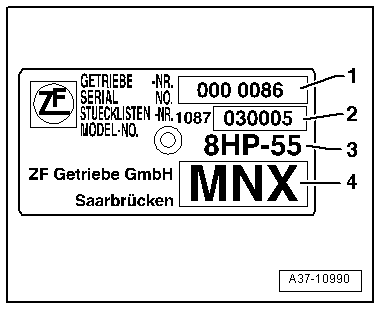

Transmission Code and Transmission Serial Number
Example:
- Transmission serial number
- Parts list number
- Manufacturer transmission identification: 8HP-55
- Example of a transmission code: MNX
The transmission code letters are also included on the vehicle data labels.
Vehicle data label location. Refer to Vehicle Data Label.
