Control Module, Attaching To Hydraulic Unit: Notes
Assembling
Replace the bolts after removing them.

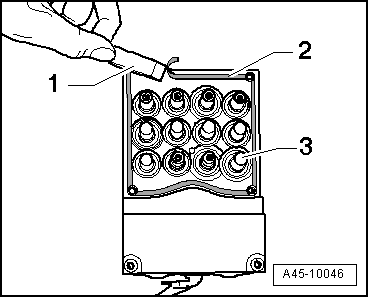

-- Clean the sealing surface on the hydraulic unit -2- with a plastic scraper -1-.
- The valve bodies -3- must not be damaged or bent.
There is a risk of malfunctions.
- The sealing surface on the hydraulic unit must have a clean, even surface.
- Replace the hydraulic unit if the sealing surface or contact tags are damaged.
- The seal on the control module cannot be replaced.
- The seal on the control module must not be pulled out or raised up.
