Left/Right Peripheral Camera -R244- / -R245-, Removing And Installing: Removing
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the mirror trim. Refer to MIRROR TRIM, REMOVING AND INSTALLING .
-- Remove the mirror adjustment unit. Refer to MIRROR ADJUSTING UNIT, REMOVING AND INSTALLING .

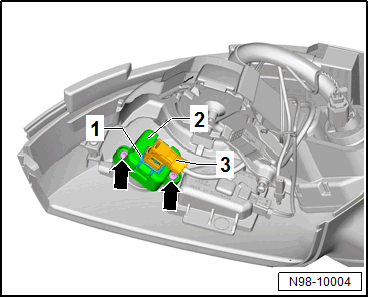

-- Release and disconnect the connector -3-.
-- Remove the screws -arrows-.
-- Remove the Left Peripheral Camera -R244- -1- with the bracket -2- from the exterior rearview mirror.
-- Remove the Left Peripheral Camera -R244- -1- from the bracket -2-.
