Distance Regulation Control Module -J428- CLIP, REPLACING

The Clips Cannot Be Removed without Being Damaged.

Procedure

• Distance Regulation Control Module -J428- removed from the retaining plate.

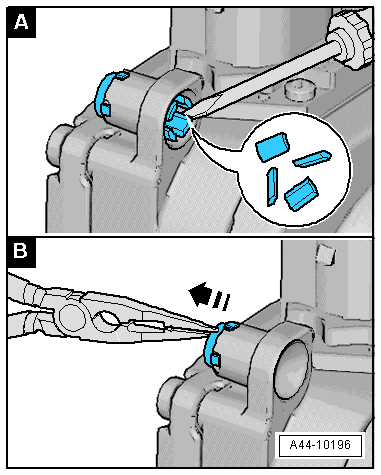

-- Place a screwdriver between the hook and the housing.

-- Bend every hook all the way around with the screwdriver until it audibly breaks off.

-- To prevent the broken hook from getting caught on the housing, remove it from the inside of the clip using needle nose pliers.

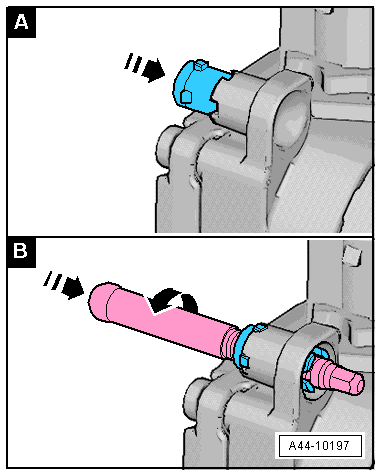

-- Insert the new clip in the hole in the housing, as shown and push in by hand until it clicks into place.

• The tabs on the clip must sit correctly in the recesses.

-- Install the stud bolt.

• The stud bolt must be aligned correctly to the clip.

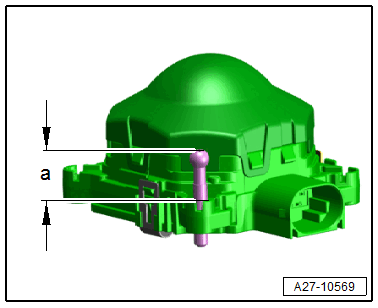

-- Turn the stud bolt into the distance regulation control module up to the dimension -a-.

Courtesy of AUDI OF AMERICA, LLC

-- Measure the dimension -a- at all stud bolts using the Digital Caliper:VAS6335  and correct if necessary.

• Dimension -a- = 17.6 mm.
