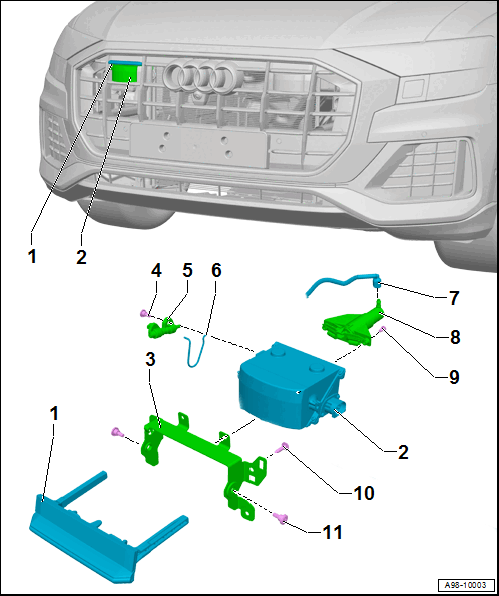

Overview - Laser Distance Regulation Control Module
- Cover
- For the washer nozzle
- Laser Distance Regulation Control Module -J1122-
- Removing and Installing. Refer to Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Adjusting. Refer to LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING, FROM PRODUCT IMPROVEMENT .
- Mount
- For Laser Distance Regulation Control Module -J1122-
- Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Screw
- 6 Nm
- Adjuster
- Removing and Installing. Refer to ADJUSTER FOR Laser Distance Regulation Control Module -J1122-, REMOVING AND INSTALLING .
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at the adjuster using the : VAS6335 and correct if necessary. .
- Spring
- Washer Fluid Hose
- Spray Nozzles
- For Laser Distance Regulation Control Module -J1122-
- Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
- Screw
- Tightening specification. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM
- Quantity: 2
- Screw
- Tightening specification and sequence. Refer to Fig 1.
- Quantity: 4
- Screw
- 6 Nm
- Quantity: 2

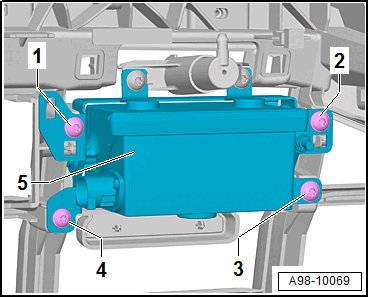

Tightening Specifications and Sequence Laser Distance Regulation Control Module J1122 with bracket 5
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 4- | Install by hand all the way |
| 2. | -1 to 4- | 4 Nm |
