2018 Audi Q7 Premium Plus, 3.0L Eng VIN AFACTORY OEM SERVICE PROCEDURE

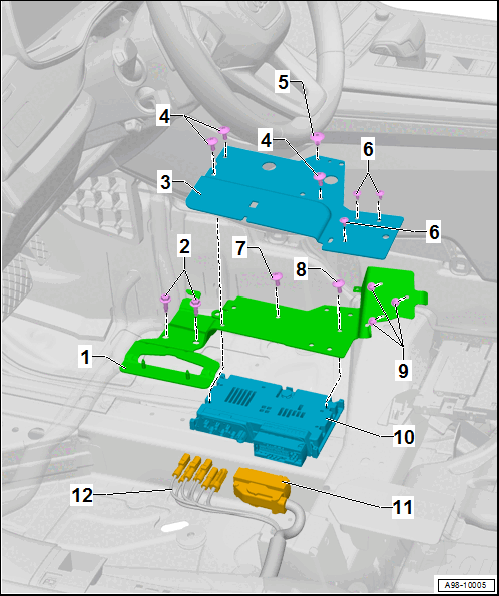

Overview - Driver Assistance Systems Control Module
- Bracket
- There are different versions. Refer to the Parts Information.
- For the Driver Assistance Systems Control Module -J1121-
- Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Quantity: 2
- Impact Guard
- Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Control module "Low" : quantity: 2
- Control module "High" : quantity: 3
- 8 Nm
- Clip
- Attaching the impact guard to bracket
- Bolt
- 4.5 Nm
- For impact guard
- Quantity: 3
- Bolt
- 8 Nm
- Only on control module "Low"
- Bolt
- 8 Nm
- Only on control module "High"
- Bolt
- 4.5 Nm
- For bracket
- Quantity: 3
- Driver Assistance Systems Control Module -J1121-
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
- Connector
- Connectors
- Allocation. Refer to the appropriate Wiring Diagram.
