-- Press out the cover -2- from the instrument panel -1- using the :T10383 .

-- Cover the control module -2- with a soft towel.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .

CAUTION:

There is a risk of destroying the windshield projection head up display control module.

- Only remove the designated bolts from the control module.

- Never remove the bolts for the housing upper section.

-- Remove the bolts -1, 3 and 4-.

-- Remove the control module -3- slightly.

Courtesy of AUDI OF AMERICA, LLC

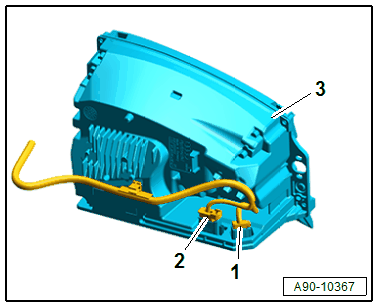

-- Disconnect the connector -1- and the connector -2- for the fiber-optic cable.

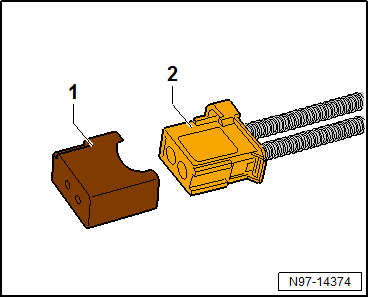

-- Seal the open wiring harness connector -2- of the fiber-optic cable with the : VAS6223/9 -1-.

Courtesy of AUDI OF AMERICA, LLC

TIP:

The protective cap prevents contamination of or mechanical damage to the front surface of the fiber-optic cable which would impair light transmission.

-- Remove the control module.
