Windshield Projection Head Up Display Control Module -J898-, CALIBRATING: Procedure
-- Move the vehicle onto a secure flat surface.
-- Set the parking brake - the vehicle must not move during the measuring.
-- Fold down the left and right sun visors, disengage them and move them to the side.

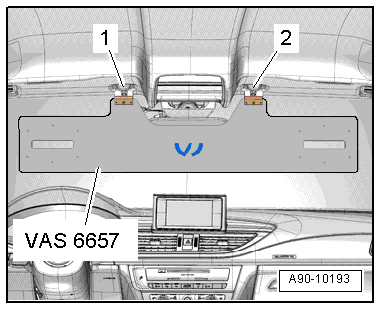

-- Attach the Head-Up Display Calibration Board Audi A6 VAS 6657 calibration device to the center retainers -1 and 2- for the sun visors.
-- Use the Vehicle Diagnostic Tester in Guided Fault Finding. Select the function windshield projection head up display control module -J898-.
- After selecting calibrate windshield projection control module, select the path height calibration.
-- Follow the instructions in the Vehicle Diagnostic Tester display.
-- After calibrating the windshield projection control module successfully, end calibration, turn off the ignition and disconnect the diagnostic connector.
