Sensor Electronics Control Module -J849-, Removing And Installing: Installing
-- Install in reverse order of removal.

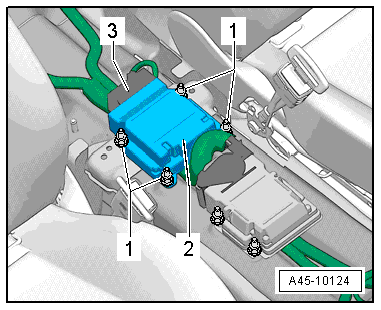

-- Mount the Sensor Electronics Control Module -J849- on the four bolts.
When installing the Sensor Electronics Control Module -J849- -2- make sure it is correctly seated in its mounting and is free of stress.
Push the Sensor Electronics Control Module -J849- into position without using the bolts or using force.
-- Install all four nuts -1-.
-- Tighten all four nuts -1- to 9 Nm.
-- Connect the connector -3-.
Start the program in Guided Functions on the Vehicle Diagnostic Tester if the control module is replaced.
-- Connect the Vehicle Diagnostic Tester to the vehicle data link connector with the ignition switched off.
Switch the ignition on.
DTC memory interrogated, errors shown corrected and DTC memory erased.
-- Start the program in Guided Functions.
