WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2000 Mercury Villager, 2000 Mercury Mountaineer, 2000 Lincoln Navigator, 2000 Ford Windstar, and 2000 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

2000 MODEL COVERAGE

MODEL

ENGINE

ENGINE ID ⁽¹⁾

FUEL SYSTEM

IGNITION SYSTEM

Econoline

4.2L

SFI

DIS

.....

4.6L

SFI

DIS

.....

5.4L

SFI

DIS

.....

5.4L (CNG)

SFI

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

Not Used

Excursion

5.4L

SFI

DIS

.....

6.8L

SFI

DIS

.....

7.3L

Turbo Diesel

Not Used

Expedition

4.6L

SFI

DIS

.....

5.4L

SFI

DIS

Explorer

4.0L (OHV)

SFI

DIS

.....

4.0L (OHC)

SFI

DIS

.....

5.0L

SFI

DIS

"F" Series Pickup

4.2L

SFI

DIS

.....

4.6L

SFI

DIS

.....

5.4L

SFI

DIS

.....

5.4L

SFI ⁽²⁾

DIS

.....

5.4L (Supercharged)

SFI

DIS

.....

6.8L

SFI

DIS

.....

6.8L

99Z

SFI ⁽³⁾

DIS

.....

7.3L

Turbo Diesel

Not Used

Mountaineer

4.0L (OHC)

SFI

DIS

.....

5.0L

SFI

DIS

Navigator

5.4L

SFI

DIS

Ranger

2.5L

SFI

DIS

.....

3.0L (Flex-Fuel)

SFI

DIS

.....

4.0L (OHV)

SFI

DIS

Villager

3.3L

SFI

Distributor

Windstar

3.0L

SFI

DIS

.....

3.8L

SFI

DIS

⁽¹⁾	Engine may be identified by 8th character of vehicle.

⁽²⁾	Bi-fuel - gasoline and CNG, or gasoline and LPG.

⁽³⁾	Bi-fuel - gasoline and LPG only.

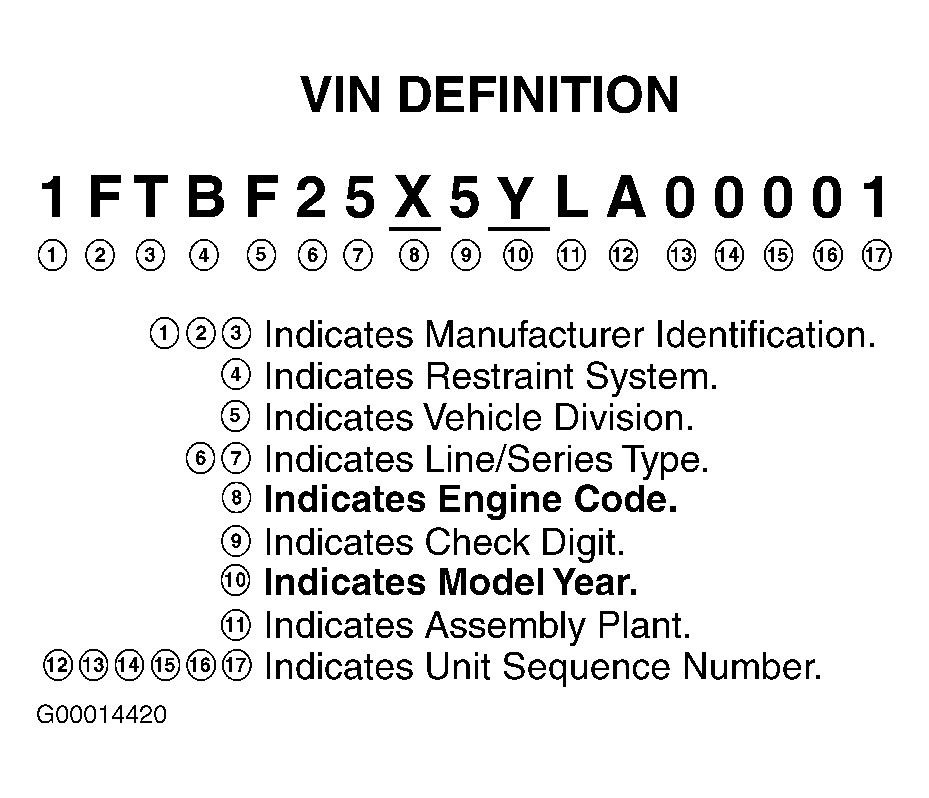

Fig 1: VIN Definition
