Component Location

WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

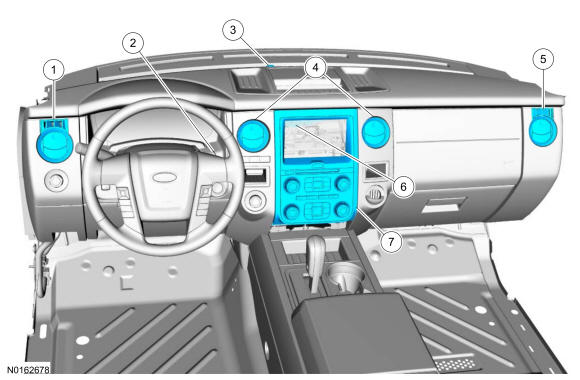

NOTE: Expedition shown, Navigator similar
GFD136702Courtesy of FORD MOTOR COMPANY
1. Driver Side Register
2. In-Vehicle Temperature Sensor
3. Sunload Sensor
4. Center Registers
5. Passenger Side Register
6. Remote Mount Climate Control Module
7. Heating Ventilation Air Conditioning(HVAC) Control Module

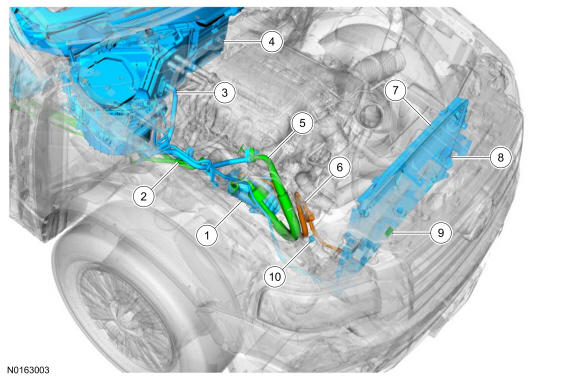

GFD136703Courtesy of FORD MOTOR COMPANY
1. Air Conditioning(A/C) Compressor
2. Auxiliary Heater & Evaporator Core Outlet and Inlet Lines
3. Thermostatic Expansion Valve Manifold and Tube Assembly
4. Heater Core And Evaporator Core Housing
5. Evaporator to Compressor Suction Line
6. Compressor to Condenser Discharge Line
7. Condenser Core
8. Desiccant Bag
9. Ambient Air Temperature Sensor
10. A/C Pressure Transducer

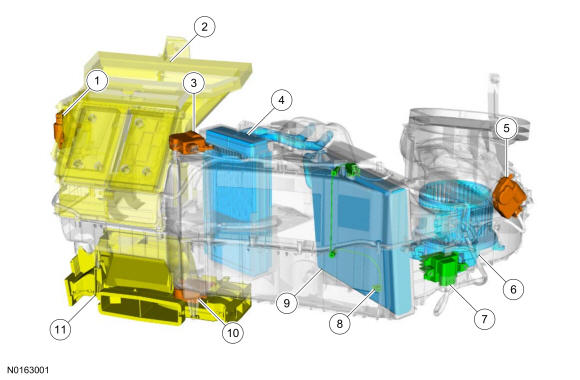

NOTE: Dual-Zone Electronic Automatic Temperature Control(EATC)
GFD136704Courtesy of FORD MOTOR COMPANY
1. Mode Door Actuator - Defrost/Panel/Floor Door
2. Plenum Chamber
3. Temperature Blend Door Actuator - Passenger Side
4. Heater Core
5. Mode Door Actuator - Air Inlet Door
6. Blower Motor
7. Blower Motor Speed Control
8. Evaporator Temperature Sensor
9. Evaporator Core
10. Temperature Blend Door Actuator - Driver Side
11. Floor Duct

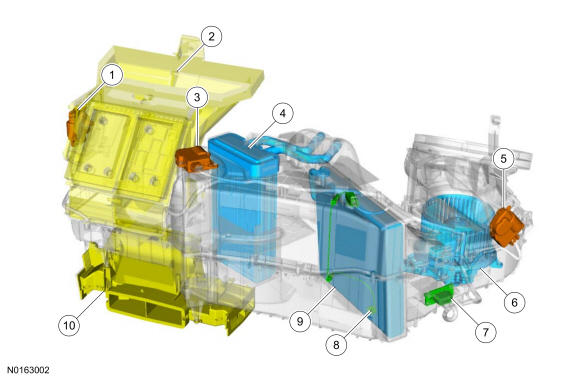

NOTE: Single-Zone EATC shown, Electronic Manual Temperature Control(EMTC) similar
GFD136705Courtesy of FORD MOTOR COMPANY
1. Mode Door Actuator - Defrost/Panel/Floor Door
2. Plenum Chamber
3. Temperature Blend Door Actuator
4. Heater Core
5. Mode Door Actuator - Air Inlet Door
6. Blower Motor
7. Blower Motor Resistor
8. Evaporator Temperature Sensor
9. Evaporator Core
10. Floor Duct
