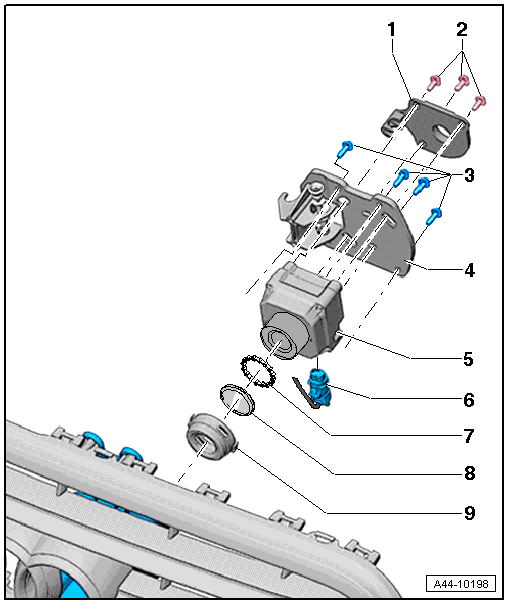

OVERVIEW - Night Vision System Camera -R212
- Retaining Plate
- Bolt
- 5 Nm
- Bolt
- 6 Nm
- Retaining Plate
- with adjusting screw and mount for the spray nozzle
- Night Vision System Camera -R212-
- 6-Pin Connector -T6d-
- Seal
- Replace after every removal
- Protective Window
- Removing and installing:NOTE:
If the protective window is no longer water tight due to damage, then the Night Vision System Camera -R212- must be completely replaced.
- Removing and installing:
- Cover
- with quick release
