2013 Audi A5 Premium, Eng CD CPMAFACTORY OEM SERVICE PROCEDURE

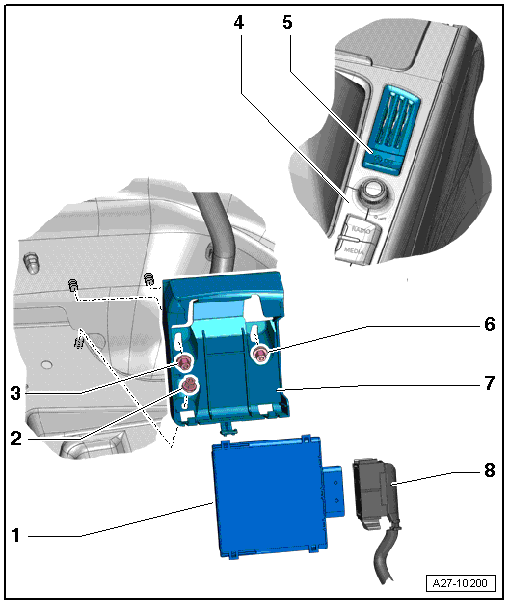

Start/Stop System Assembly Overview
- Voltage Stabilizer -J532-
- Removing and installing. Refer to VOLTAGE STABILIZER, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Nut
- 3 Nm
- Cover/Multimedia System Control Head -E380-
- Start/Stop Mode Button -E693-
- Various installed locations
- Removing and installing. Refer to Start/Stop Mode Button -E693-, REMOVING AND INSTALLING .
- Nut
- 3 Nm
- Bracket
- For the Voltage Stabilizer -J532-
- Connector
