Windshield Projection Head Up Display Control Module, Removing And Installing: Removing
-- Remove the upper cover, refer to Overview - Front Door Trim Panel .

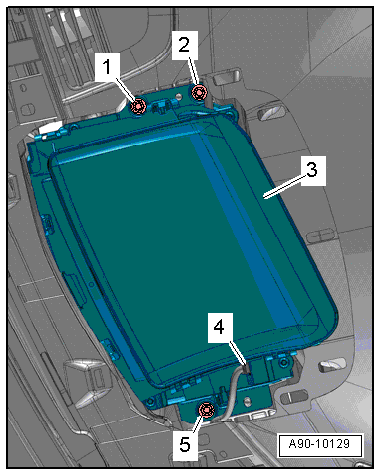

-- Cover the control module -3- with a soft towel.
-- Remove the windshield, refer to Windshield .
-- Remove the bolts -1, 2 and 5-.
-- Lift the control module slightly and disconnect the connector -4-.
-- Remove the control module.
