2012 Audi A8 BaseFACTORY OEM SERVICE PROCEDURE

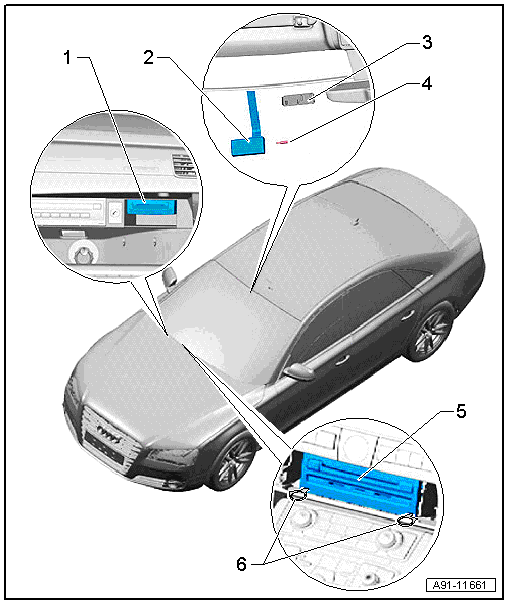

Navigation System Component Location Overview, Japan
- Chip Card Reader Control Module -J676-
- Connector assignment, refer to Chip Card Reader Control Module - J676- CONNECTOR ASSIGNMENT, JAPAN .
- Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
- Traffic Data Antenna -R173-
- Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
- Bracket
- Glued to the windshield
- Safety piece
- Information Electronics Control Module 1 -J794-
- Connector assignment, refer to Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT, JAPAN .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Radio Removal ToolT10057
