Night Vision System Camera, Removing And Installing: Removing: Notes
-- Remove the front lock carrier cover, refer to Lock Carrier .

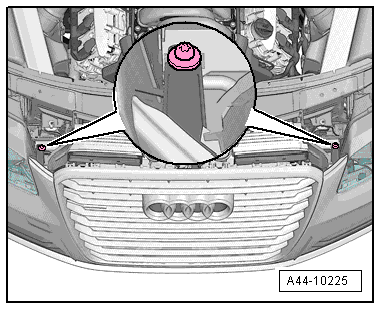

-- Remove the right and left bolts for the front bumper cover.

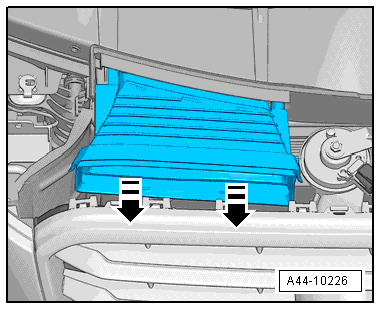

-- If installed, remove the left and right air intake connections -arrows-.

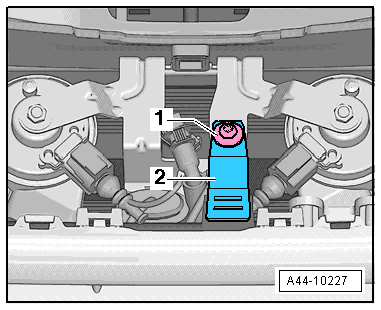

-- Remove the bolt -1- and remove the bracket -2-.
-- Release the clamp -arrow-, and remove the washer fluid hose -1-.
-- Clamp off the washer fluid hose at a suitable location using Hose Clamps - Up To 25mm3094.
-- Remove the horn with the bracket from the front end and set aside, refer to [For engine(s) CDRA,CTUB,CEUA,CGTA,CPNA,CEJA] Horn .

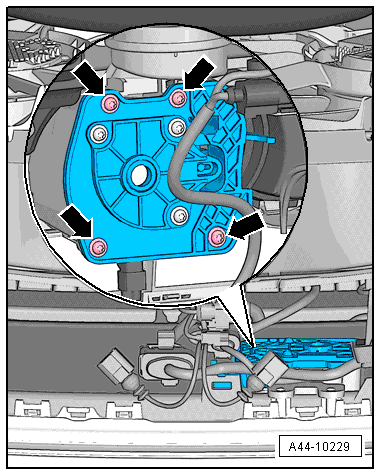

-- Remove the bolts -arrows-.
-- For the following work the front bumper cover is pulled slightly forward.
-- Remove the Night Vision System Camera -R212- with the retaining plate from the front bumper cover and guide upward. Pay attention that the spray nozzle is not damaged.

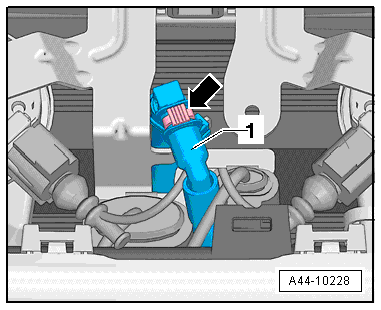

-- Disconnect the connector to the Night Vision System Camera -R212-.

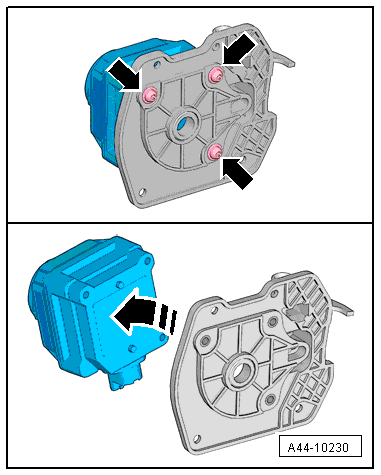

-- Remove the bolts -1- through -3- and remove the Night Vision System Camera -R212- from the retaining plate.
