Sensor Electronics Control Module, Removing And Installing: Removing

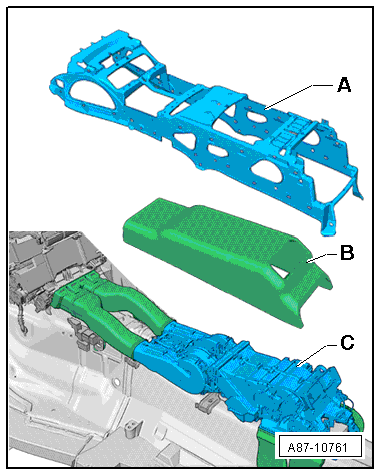

-- Remove the center console support -A-, refer to CENTER CONSOLE .
-- Remove the rear air distribution housing -C- on the center tunnel, refer to REAR HEATER AND A/C UNIT .
-- Equipment levels with rear A/C unit: free up the wires for the rear A/C sensors and lift the rear A/C unit as far as possible from the center tunnel.
-- Disconnect the connector -3-.
-- Remove the nuts -1-.
-- Remove the Sensor Electronics Control Module -J849- -2-.
