Windshield Projection Head Up Display Control Module -J898-, Calibrating
Special Tools And Workshop Equipment Required
- Calibration Tool For Lane Changing Assist VAS 6656
-- The windshield projection control module must be calibrated in "Guided Fault Finding" or "Guided Functions" using the Vehicle diagnostic tester if:
- The windshield projection head up display control module was replaced.
- The windshield was removed and installed.
- The DTC "no or incorrect basic setting/adaptation" is stored in the DTC memory.
Procedure
-- Move the vehicle onto a secure flat surface.
-- Set the parking brake - the vehicle must not move during the measuring.
-- Fold down the left and right sun visors, disengage them and move them to the side.

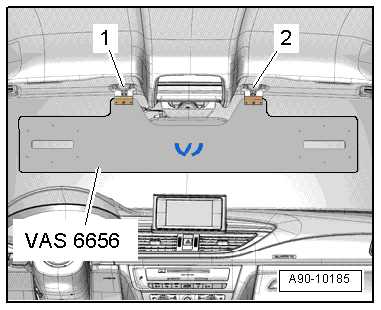

-- Attach the VAS 6656 to the center retainers -1 and 2- for the sun visors.
Procedure
-- Connect the vehicle diagnosis tester and in the mode "Guided Fault Finding" or "Guided Functions" select the function windshield projection head up display control module -J898-. Refer to the Vehicle Diagnostic Tester.
- After selecting calibrate "windshield projection control module", select the path "height calibration".
-- Follow the instructions in the Vehicle Diagnosis Tester display.
-- After calibrating the windshield projection control module successfully, end calibration, turn off the ignition and disconnect the diagnostic connector.
