2012 Audi A7FACTORY OEM SERVICE PROCEDURE
Peripheral Camera Control Module -J928-, Connector Views

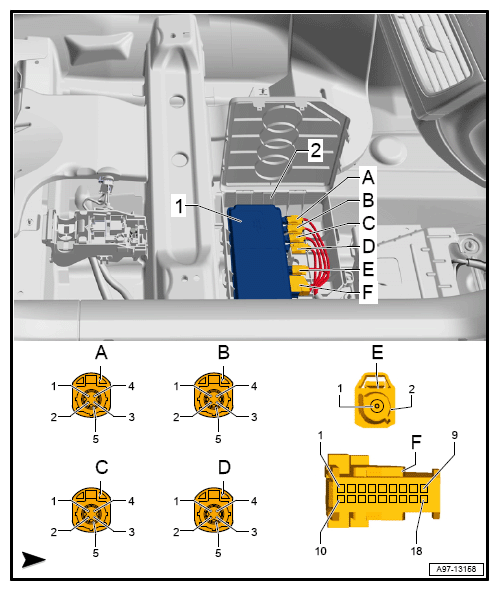

- 18-Pin Connector -T18f-
| T18f (F) | Designation |
|---|---|
| 1 | Terminal 30, from Fuse Carrier 3ST3 in Fuse panel F SF |
| 2 | CAN-Bus Instrument Cluster, High to Wiring junction for instrument cluster CAN-Bus, High TV36 |
| 3 | |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | |
| 10 | CAN-Bus Instrument Cluster, Low to Wiring junction for instrument cluster CAN-Bus, Low TV40 |
| 11 | |
| 12 | Terminal 31, to 688 Ground Connection 2 (on center tunnel) |
| 13 | |
| 14 | |
| 15 | |
| 16 | |
| 17 | |
| 18 |
