Hydraulic Unit With Control Module, Removing And Installing: Installing
Install in reverse order of removal while noting the following:
Do not remove sealing plugs at new hydraulic unit until the corresponding brake line is about to be installed.
If the sealing plugs are removed too early, brake fluid can escape and unit may not be sufficiently filled or adequately bled.
-- Attach the bracket to the hydraulic unit.
Audi RS-6/RS-7:

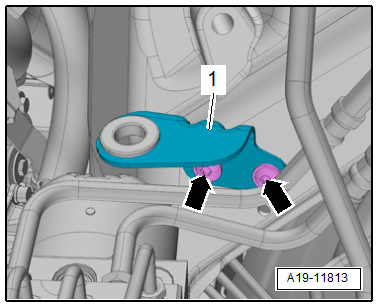

-- Install bracket -1- and tighten -arrows- to 10 Nm.
Continuation for all vehicles:
-- Install the hydraulic unit and control module into the bracket in the vehicle.
-- Remove the plugs from the new hydraulic unit.
-- Install all the brake lines.
-- Tighten all the brake lines.
