Abs Control Module And Abs Hydraulic Unit
Disconnecting ABS Control Module -J104- and ABS Hydraulic Unit -N55- is not permitted.
Special tools and workshop equipment required
- Brake Pedal Actuator V.A.G 1869/2
- Vehicle Diagnosis, Testing and Information System VAS 5051
Removing
-- Read the control module version and make a note of it.
-- Disconnect the battery. Be sure to get the radio code beforehand. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .

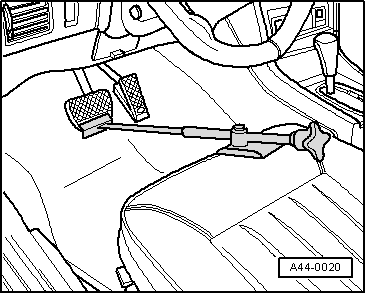

-- Insert V.A.G 1869/2 between brake pedal and driver's seat by pressing brake pedal down at least 60 mm.
-- Connect bleeder bottle hose to left front and left rear brake caliper bleeder screw.
-- Open left rear and left front brake caliper bleeder screws to reduce pressure in hydraulic unit.
-- Close left front and rear brake caliper bleeder screws.
-- Do not remove V.A.G 1869/2.

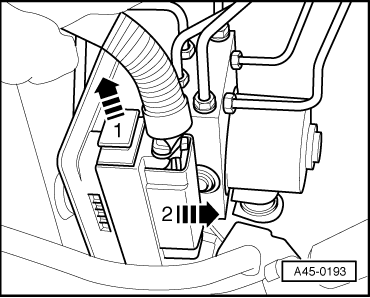

-- Release control module harness connector -arrow 1- and pull off -arrow 2-.
