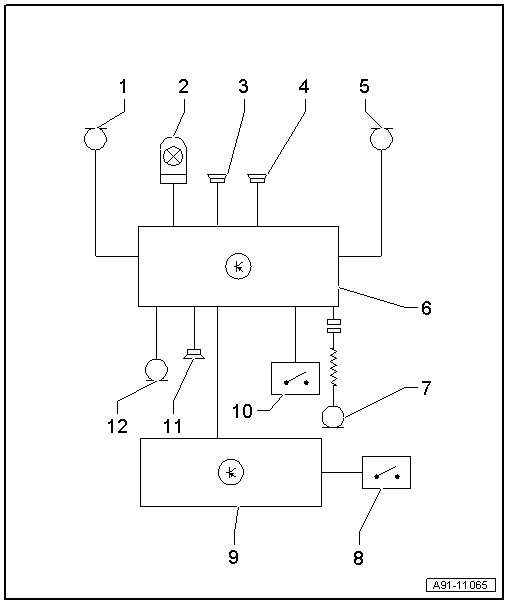

Endangered Alarm System Intercom Overview
- Microphone in Left Exterior Rearview Mirror -R76-
- Inside the left exterior mirror ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Blue Revolving Roof Lamp Bulb -L144-
- On the vehicle roof
- Exterior Speaker -R68-
- Exterior Speaker 2 -R69-
- Microphone in Right Exterior Rearview Mirror -R77-
- Inside the right exterior mirror ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Hazard Alarm Control Module -J476-
- Behind luggage compartment left side trim ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Special Signals Microphone -R81-
- Inside the glove compartment ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Intercom System Switch -E248-
- Inside the center console at the top ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Special Purpose Vehicle Control Module -J608-
- Behind the glove compartment ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Intercom System Talk Button -E253-
- On the steering column switch module (turn signal switch -E2-) ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- left Front Speaker -R2-
- Inside the instrument panel cover at the bottom on the driver side ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Microphone Unit in Front Roof Module -R164-
- Inside the front interior lamp -W1- ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW

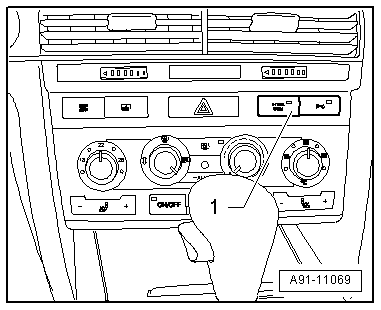

Intercom system switch
- Inside the center console at the top -1-
- Removing and installing, refer to REAR CENTER CONSOLE

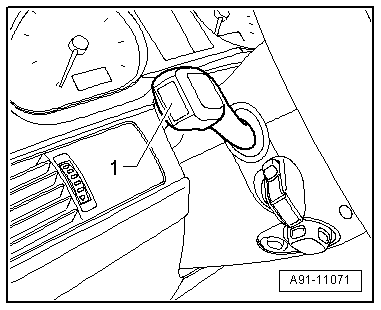

Intercom system talk button
- On the steering column switch module (turn signal switch -E2-) -1-
- Removing and installing, refer to STEERING COLUMN SWITCH MODULE

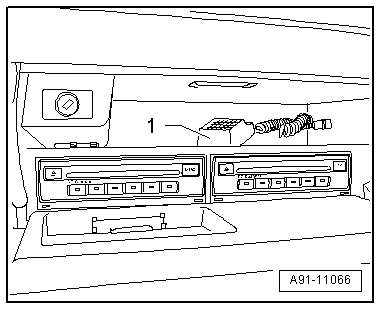

Special signals microphone
- Inside the glove compartment -1-

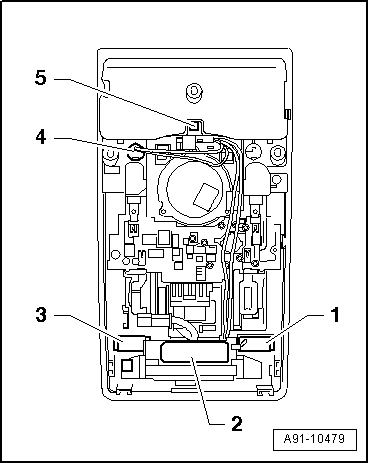

ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Inside the front interior lamp -W1- -3-
- Removing and installing (from MY 07), refer to MICROPHONE UNIT IN FRONT ROOF MODULE FROM MY 07

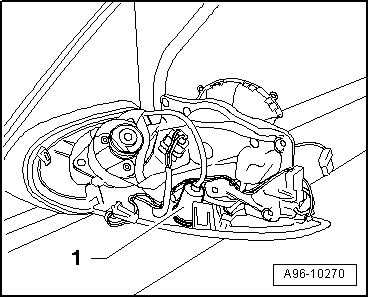

ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- In the left / right exterior mirror -1-
- Removing and installing, refer to ENDANGERED ALARM SYSTEM INTERCOM, MICROPHONE IN LEFT EXTERIOR REARVIEW MIRROR
ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Behind luggage compartment left side trim -1-
- Removing and installing, refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL COMPONENT OVERVIEW

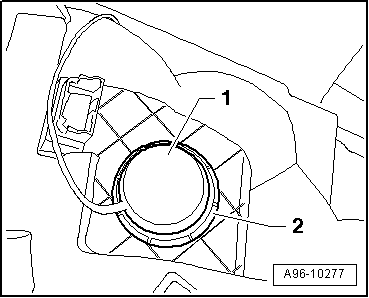

ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Inside the instrument panel cover at the bottom on the driver side -1-
- Removing and installing, refer to ENDANGERED ALARM SYSTEM INTERCOM, LEFT FRONT SPEAKER

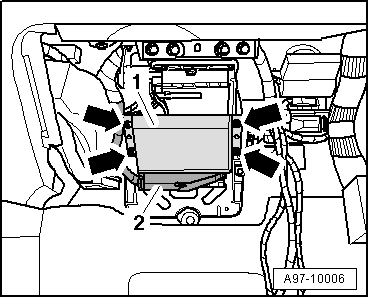

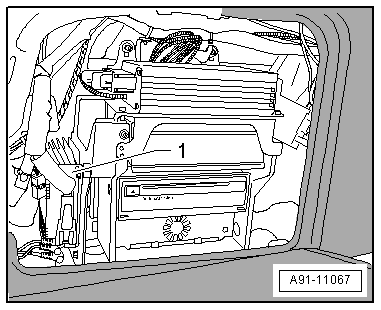

ENDANGERED ALARM SYSTEM INTERCOM OVERVIEW
- Behind the glove compartment -1-
- Removing and installing, refer to GLOVE COMPARTMENT
