Technical Data
PR Number for Brake Systems
The brake system installed in a vehicle is documented on the vehicle data sticker by the relevant PR number.

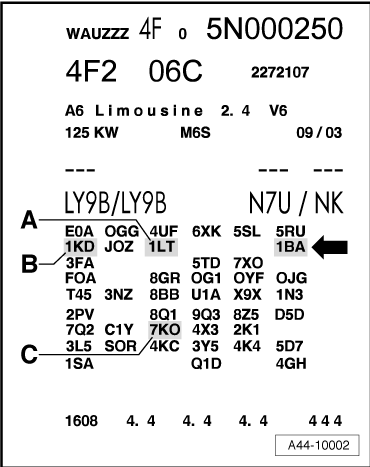

The vehicle data label can be found in the spare wheel well as well as in the Maintenance booklet.
The front wheel brakes PR no. is found at item -A-.
The rear wheel brakes PR no. is found at item -B-.
- Allocation.
- The following tables explain the PR numbers. These are important for the combination brake caliper/brake rotor and brake pad specifications.
