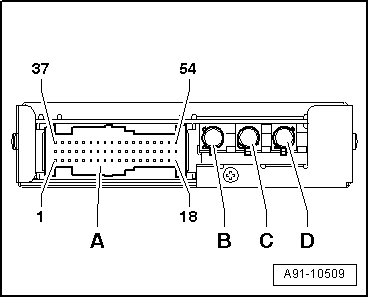

Rearview Camera System Control Module
A -
Black 54-pin connector (T54b)
B -
FBAS input (brown) from TV tuner -R78- (through 29 August 2008)
-
not assigned (from 1 September 2008)
C -
FBAS output (green) to front information display control head control module -J523- (through 29 August 2008)
-
FBAS output (green) to information electronics control module 1 -J794- (from 1 September 2008)
D -
FBAS input (gray) from rear view camera -R189-
Unlisted connector terminals are not assigned.
