Transmission Control Module, Replacing
- To achieve optimal anti-theft protection for the vehicle, an anti-theft immobilizer was installed. The anti-theft immobilizer is a system for enabling/locking the Transmission Control Module (TCM) J217.
- To perform adaptation of the anti-theft immobilizer.
Procedure
Check the identification of the previous Transmission Control Module (TCM) J217 as follows:
- Connect the scan tool.
- Switch the ignition on.
- Select "Diagnostic mode 9: Vehicle information."
- Select the "Test-ID 04: Calibration identification".
- The Transmission Control Module (TCM) J217 identification will be displayed, e.g.: 09G27750 L 0301
- End diagnosis and switch the ignition off.
Removal
- Remove the transmission end cover and mounting bolts. Refer to the appropriate service information.

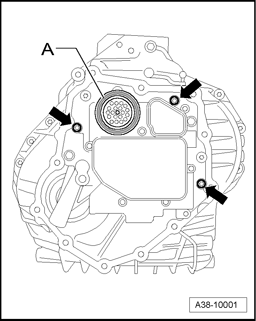

Remove the mounting bolts - arrows - and pull out the Transmission Control Module (TCM) J217 without tilting it.
Remove twin lip oil seal - A - from the Transmission Control Module (TCM) J217.
Installation
- Assembly is performed in the reverse of the removal. Note the following:
- When positioning the Transmission Control Module (TCM) J217 ensure sensor on control module is not damaged.
