Testing If Scan Tool Display Approximately 140.0° C

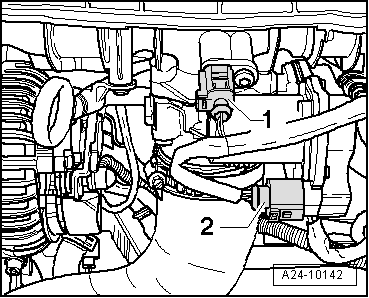

-- Disconnect the Intake Air Temperature (IAT) Sensor - G42- electrical harness connector -1-.
-- Switch the ignition on.
Specified value: scan tool display approximately -40.0° C
-- End diagnosis and switch ignition off.
If the specified value was obtained:
-- Replace the Intake Air Temperature (IAT) Sensor - G42-. Refer to appropriate service information.
-- Go to Final procedures
If the specified value was not obtained:
Checking wiring
If the manufacturers test box is being used, perform the following step.
-- Install the test box.
If the manufacturers test box is not being used, perform the following step.
-- Remove the Motronic Engine Control Module (ECM) -J623 -. Refer to appropriate service information.

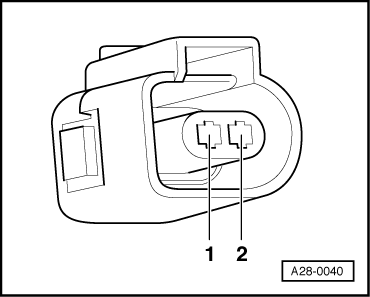

-- Using a Multimeter, check the Intake Air Temperature (IAT) Sensor - G42- electrical harness connector terminals to the Motronic Engine Control Module (ECM) - J623- electrical harness connector T60 terminals for an open circuit according to the wiring diagram.
| Intake Air Temperature (IAT) Sensor - G42- electrical harness connector terminals | Motronic Engine Control Module (ECM) -J623- electrical connector T60 terminals or test box socket |
|---|---|
| 1 | 42 |
| 2 | 13 |
Specified value: 1.5 Ω Max.
If the specified value was not obtained:
-- Check the wiring for a short circuit to Battery voltage, or an open circuit.
-- Check the electrical harness connector for damage, corrosion, loose or broken terminals.
-- If necessary, repair the faulty wiring connection.
-- Go to Final procedures
If the specified value was obtained:
-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to appropriate service information.
Final procedures
-- Reinstall the engine cover with air filter, if necessary. Refer to the appropriate service information.
-- After the repair work, the following work steps must be performed in the following sequence:
- Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
- If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
- If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
