Radio Frequency Controlled Clock Receiver
Removing
-- Remove the rear bumper cover. Refer to Removal and Installation .

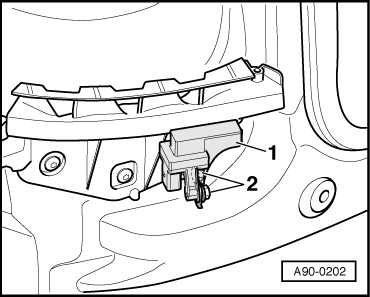

-- Disconnect the connector on the radio frequency controlled clock receiver -J489- -item 1-.
-- Remove screws -2- and remove radio frequency controlled clock receiver.
Installing
Install in reverse order of removal, noting the following:
-- Install the rear bumper cover. Refer to Removal and Installation .
Tightening Specifications
| Component | Nm |
|---|---|
| Radio frequency controlled clock receiver to bumper | 2.5 |
