Radio/Navigation Display Control Module
Special tools and workshop equipment required
- Radio Removal Tool T10057
-- If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine using the Vehicle Diagnosis, Testing and Information System VAS 5051.
-- Switch off all electrical consumers.
-- Remove the key.
Removing

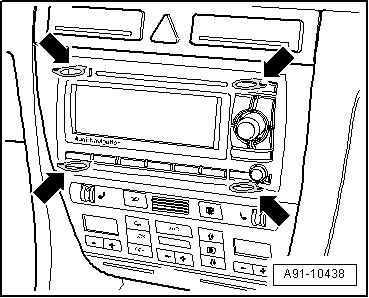

-- Place T10057 -arrows- in release slits on Radio/Navigation Display Control Module -J503- until they engage. Points on grip eyes face outward.
-- Remove radio/navigation display control module from instrument panel.
-- Release connectors on radio/navigation display control module and remove it.
-- Remove T10057 by pressing locking tabs on radio/navigation display control module.
Installing
-- Connect all harness connectors.
-- Slide radio/navigation display control module straight into instrument panel until it engages in installation frame.
