Test sequence
- Connect vehicle diagnostic, testing and information system VAS 5051. See VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM, CONNECTING AND SELECTING FUNCTIONS
. Select vehicle system "01 - Engine electronics" in selection. Engine must be run at idle.

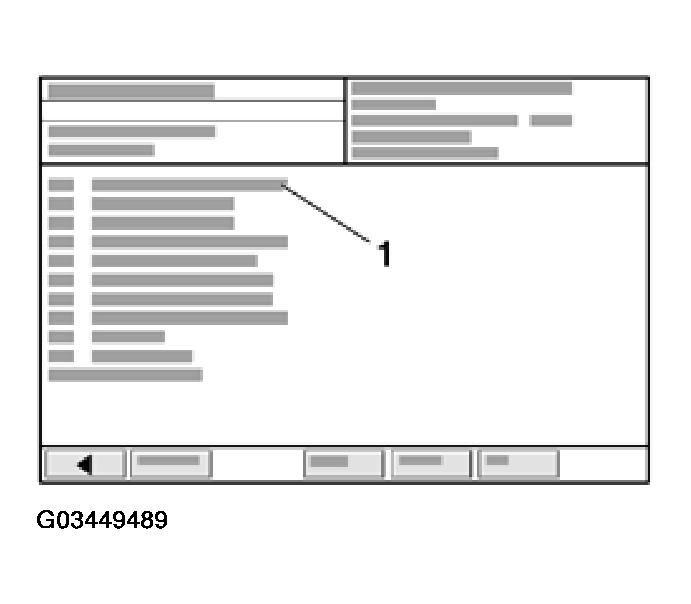

Display on VAS 5051:
- Under -1- select diagnostic function "08 - Read measured value block".
Display on VAS 5051:
Courtesy of AUDI OF AMERICA, INC.

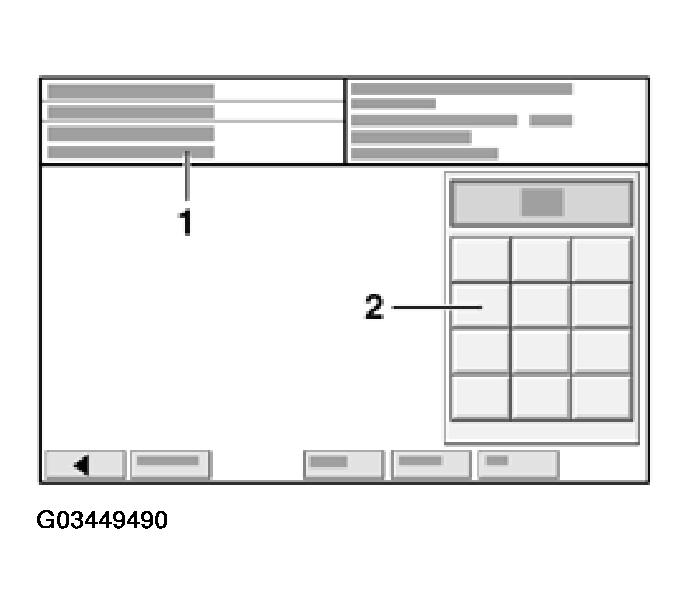

- Enter display group
- Enter "020" for "display group number 020" in zone -2- and confirm entry by pressing the -Q- button.

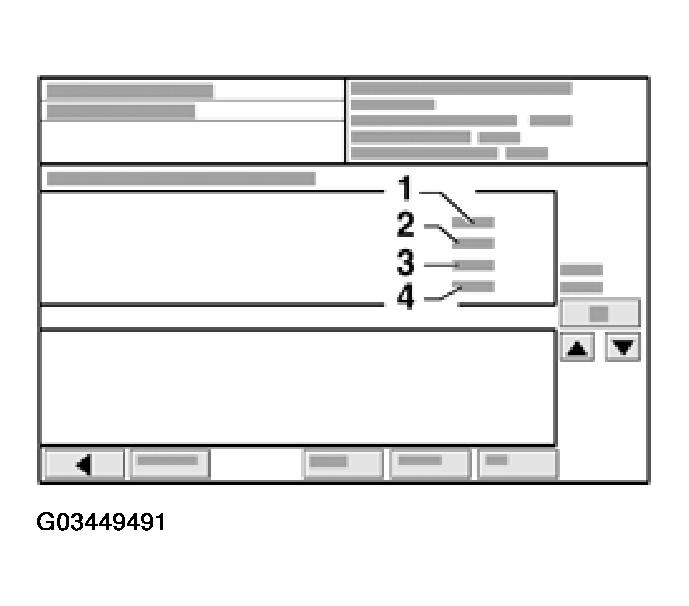

Display on VAS 5051:
- Check knock control in display zones -1- to -4-.
| Display zones | ||||
|---|---|---|---|---|
| 1 | 2 | 3 | 4 | |
| Display group 020: Ignition knock recognition control while driving | ||||
| Display | xx.x °KW | xx.x °KW | xx.x °KW | xx.x° KW |
| Display | Ignition timing retardation by knock recognition control, cylinder 1 | Ignition timing retardation by knock recognition control, cylinder 2 | Ignition timing retardation by knock recognition control, cylinder 3 | Ignition timing retardation by knock recognition control, cylinder 4 |
| Specified value | 0...12 °Crankshaft | 0...12 °Crankshaft | 0...12 °Crankshaft | 0...12 °Crankshaft |
| Note: | Evaluation. See EVALUATION IGNITION ANGLE RETARDATION . | |||
- Exit function "08 - Read measured value block" by pressing < button.
