2006 Audi A4 Base, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Test sequence
Component location. See item 6 in COMPONENT LOCATIONS, OVERVIEW .
NOTE:
The engine speed (RPM) sensor is a combined speed sensor and reference mark sensor. The engine cannot be started without a signal from the engine speed (RPM) sensor -G28-. If the signal from the engine speed (RPM) sensor -G28- fails while the engine is running, the engine will cut out immediately.
- Before performing test, make sure that sensor is correctly installed and firmly seated.

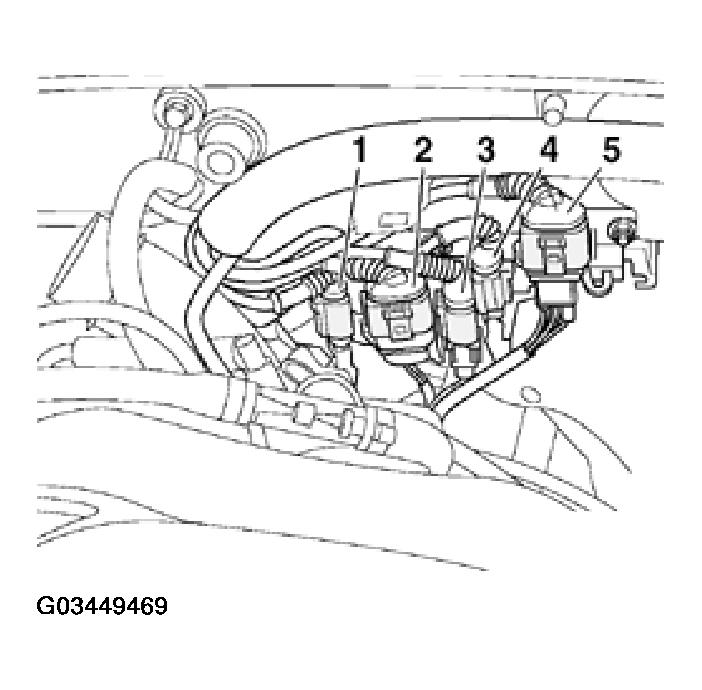

- Disconnect engine speed (RPM) sensor connector -G28- -Pos. 3-.
NOTE:
To gain access to the connector, remove coolant expansion tank bolt -arrow- and move expansion tank to the side. Fuel hoses remain connected.
