Identifying Suspension Variations

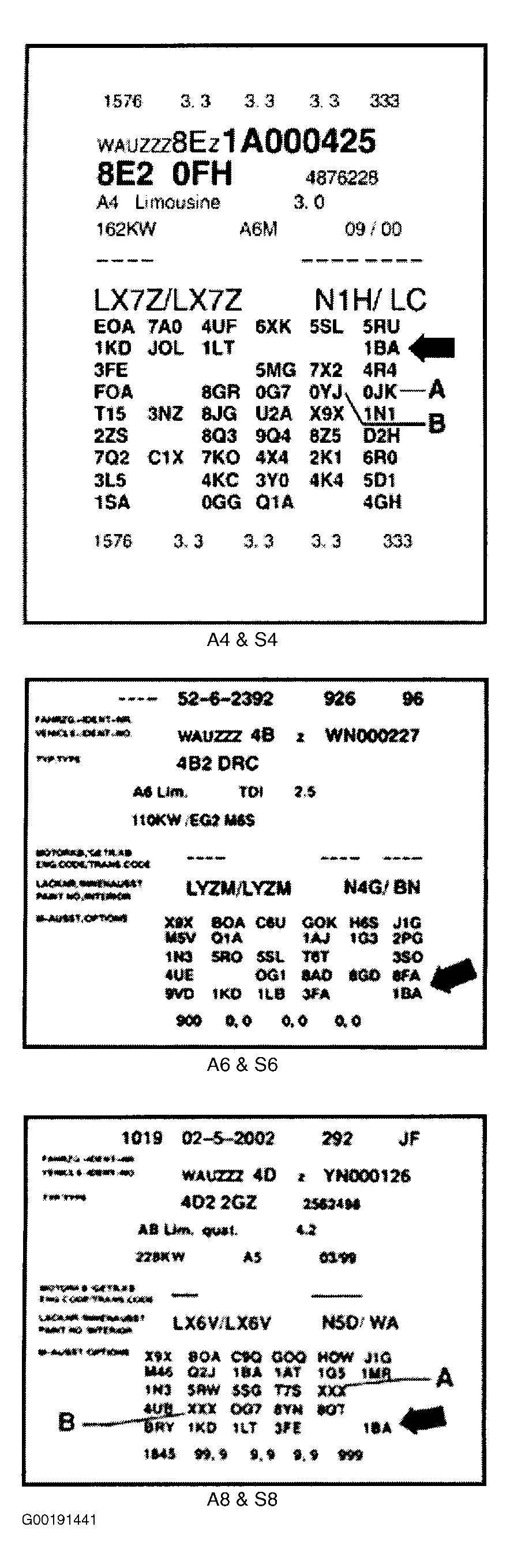

Various suspensions are offered as options. These variations are identified by part numbers. Running gear version installed in vehicle is indicated by the factory weight code on the vehicle data plate. See Fig 1 . Vehicle data plate is located in spare tire well and in service book. The following table identifies suspension versions. Identifying proper suspension version is critical for wheel alignment. See IDENTIFYING SUSPENSION VARIATIONS table.
| Suspension Identification Code | Suspension Variation | ||
|---|---|---|---|
| 1BA | Standard Suspension | ||
| 1BD | Sport Suspension S8 | ||
| 1BE | Sport Suspension | ||
| 1BG | Suspension With Level Control System | ||
| 1BN | Suspension With Level Control System (Europe) | ||
| 1BT | (1) Rough Terrain Suspension | ||
| K8L | Audi A8 Long Wheelbase | ||
|
|||
