Servotronic, assembly overview: Notes

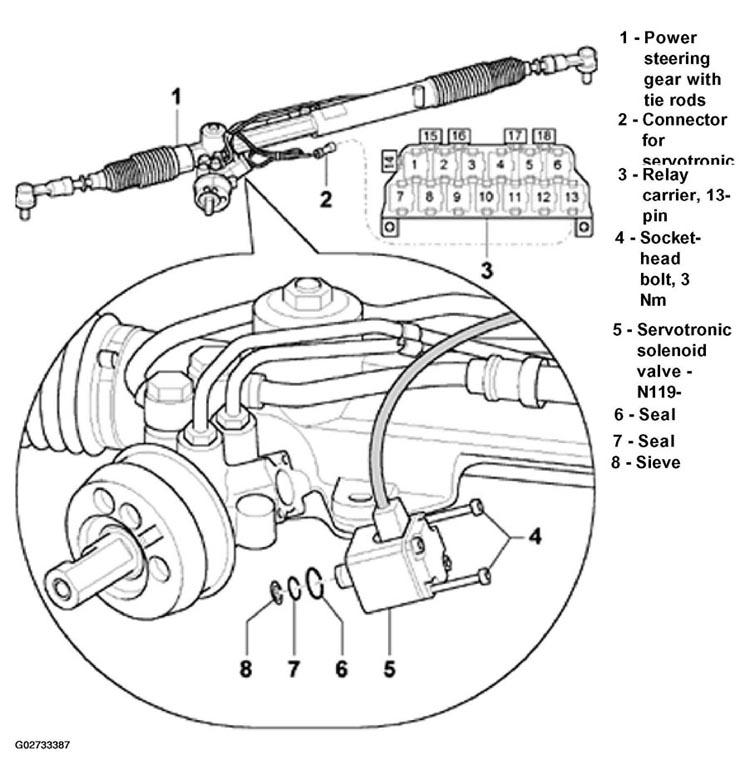

The following list pertains to Fig 1.
- Power steering gear with tie rods
- Assembly Overview, see POWER STEERING GEAR, ASSEMBLY OVERVIEW
- Connector for servotronic
- Relay carrier, 13-pin
- Located under trim in driver's footwell
See appropriate System Wiring Diagrams article.
- Relay for servotronic control module - J236- (position 13)
- Checking voltage supply, see SERVOTRONIC, CHECKING VOLTAGE SUPPLY
- Checking speed signal, see SPEED SIGNAL, CHECKING
- Located under trim in driver's footwell
- Socket-head bolt, 3 Nm
- 2.5 mm
NOTE: Do not open Torx bolts! - Servotronic solenoid valve - N119-
- Steering gear must be removed to replace servotronic valve.
- Checking, see SERVOTRONIC VALVE, CHECKING
NOTE: DO NOT open Torx bolts! - Seal
- Always replace
- Seal
- Always replace
- Sieve
- Always replace
