Test sequence: Notes

• Connect testing and information system VAS5051. See VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM VAS5051, CONNECTING AND SELECTING FUNCTIONS . Select vehicle system "01 - Engine electronics". Engine must be running at idling speed.

Display on VAS5051:

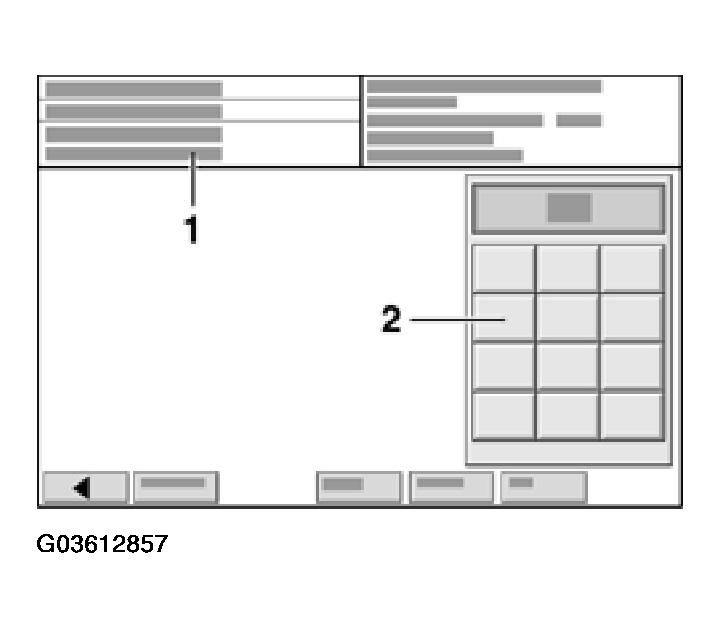

Fig 1: Identifying Display On VAS5051 - Knock Control Stop, Checking (1 Of 4)

Courtesy of AUDI OF AMERICA, INC.

• Under -1- select diagnostic function "08 - Read measured value block".

Display on VAS5051:

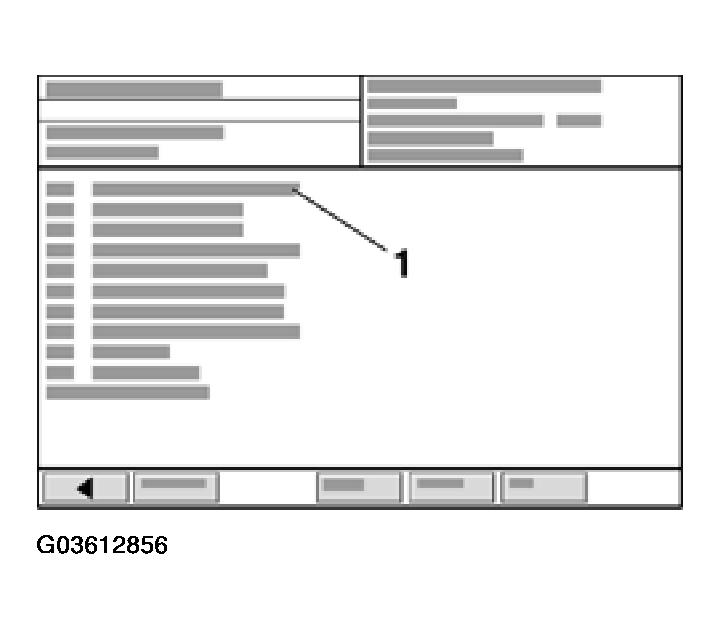

Fig 2: Identifying Display On VAS5051 - Knock Control Stop, Checking (2 Of 4)

Courtesy of AUDI OF AMERICA, INC.

1. - Enter display group max. input value = 255

• Enter "020" for "display group number 020" in zone -2- and confirm entry by pressing -Q- button.

Display on VAS5051:

Fig 3: Identifying Display On VAS5051 - Knock Control Stop, Checking (3 Of 4)

Courtesy of AUDI OF AMERICA, INC.

• Check indication in display fields -1- to -4-.
  DISPLAY ZONES IGNITION KNOCK CONTROL CHART



  	Display zones
  	1	2	3	4
  Display group 020: Ignition knock control during driving
  Display	xx.x ° CA	xx.x ° ° CA	xx.x ° CA	xx.x ° CA
  Display	Ignition angle retardation cylinder 1 through  Knock control	Ignition angle retardation cylinder 2 through  Knock control	Ignition angle retardation cylinder 3 through  Knock control	Ignition angle retardation cylinder 4 through  Knock control
  Specif. value	0 to 12 ° CA	0 to 12 ° CA	0 to 12 ° CA	0 to 12 ° CA
  Note:	Evaluation  : See EVALUATION OF IGNITION ANGLE RETARDATION  table.

  NOTE: The numbers displayed in display zones 1 to 4 represent the actual ignition timing retardation due to the knock control of the individual cylinders. The ignition angle retardation is carried out late in ° CA (crankshaft degrees).
• To change to display group 021, Press --> button.
  Fig 4: Identifying Display On VAS5051 - Knock Control Stop, Checking (4 Of 4)

  Courtesy of AUDI OF AMERICA, INC.

Display on VAS5051:

• Check indication in display fields -1- and -2-.

• Exit function "08 - Read measured value block" by pressing --> button.
