2001 Audi A6 BaseFACTORY OEM SERVICE PROCEDURE
Window Switches

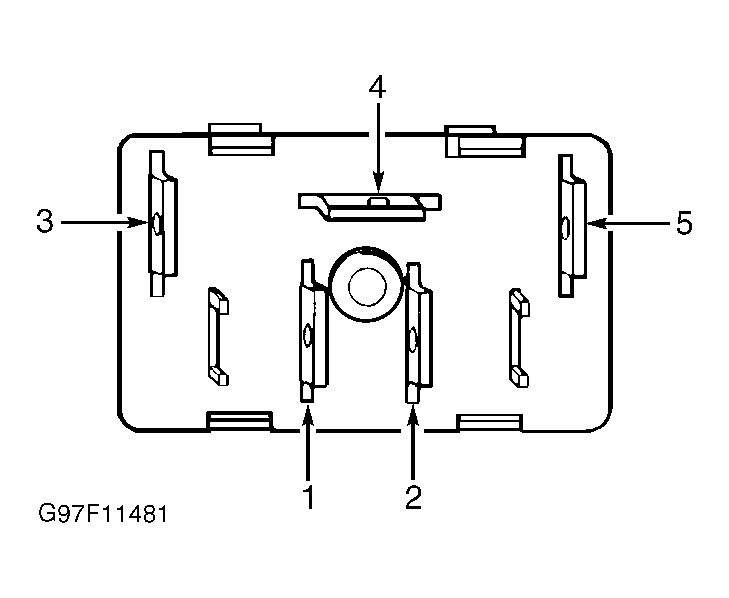

- Remove window switch to be tested and disconnect harness connector. Check continuity between switch terminals with switch in appropriate position. See POWER WINDOW SWITCH TEST table. See Fig 1 . If continuity is not as specified, replace window switch.
- After installation of new components or disconnecting and reconnecting battery, run power window to fully closed position. Release switch. Place and hold window in close position for more than one second. This will reactivate the "express" feature.
POWER WINDOW SWITCH TEST
| Switch Position | Check For Continuity Between Terminals No. | ||||
|---|---|---|---|---|---|
| Up | 1 & 4 | ||||
| Neutral (1) | (2) 2 & 5; 1 & 3 | ||||
| Down | 2 & 4 | ||||
|
|||||
