If a control module with traction control function (ASR) is replaced, or if one of the following codes are stored in the DTC memory of the control module, the control module must be coded according to the type of engine and transmission.

"ABS/EDL/transmission - electrical connection"
"Control module incorrectly coded"
"CAN-Bus - message missing from transmission control module"

NOTE:

The coding can only be performed if a workshop code is stored in VAG 1551 scan tool.
The 5-digit coding will appear when the control module identification is displayed.

Connect VAG 1551 scan tool and select address word 03: "Brake electronics". See VAG 1551 SCAN TOOL, CONNECTING AND ENTERING ADDRESS WORD .
Check the control module version. See CHECK CONTROL MODULE VERSIONS (FUNCTION 01) and Press --> button.
Press --> button.

Indicated on display

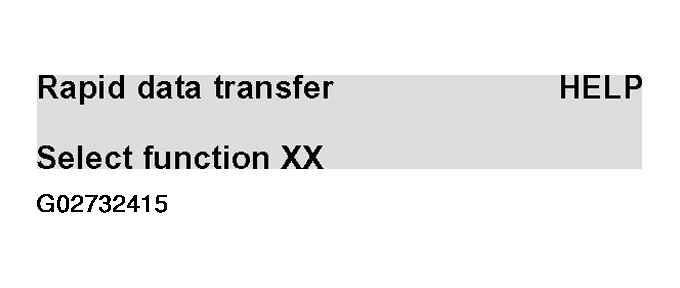

Fig 1: VAG 1551 Scan Tool Display - Select Function XX

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -7- for the function "Code Control Module".

Indicated on display

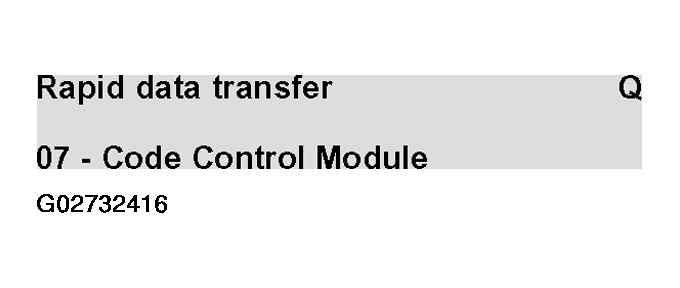

Fig 2: VAG 1551 Scan Tool Display - 07 Code Control Module

Courtesy of AUDI OF AMERICA, INC.

Press -Q- button to confirm input.

Indicated on display:

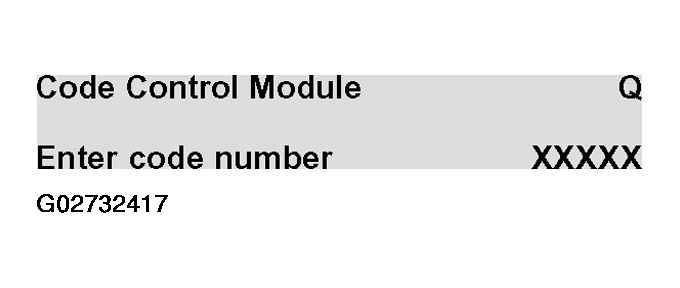

Fig 3: VAG 1551 Scan Tool Display - Enter Code Number

Courtesy of AUDI OF AMERICA, INC.

Enter the required code and confirm with -Q- button.
