Coding procedure

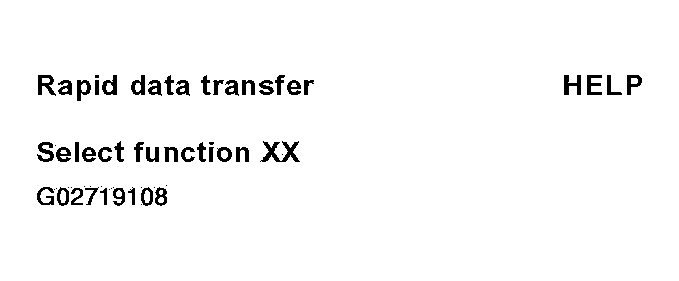

Indicated on display
- Press -0- and -7- to select "Code Control Module" function 07.

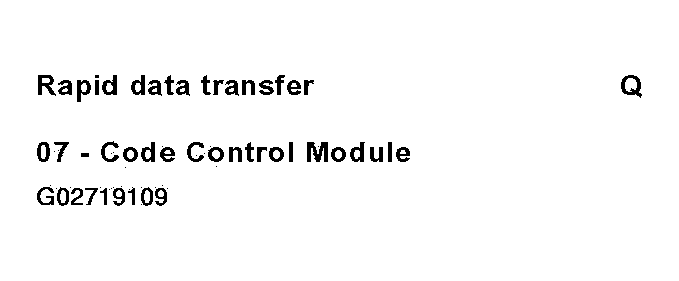

Indicated on display
- Press -Q- button to confirm input.

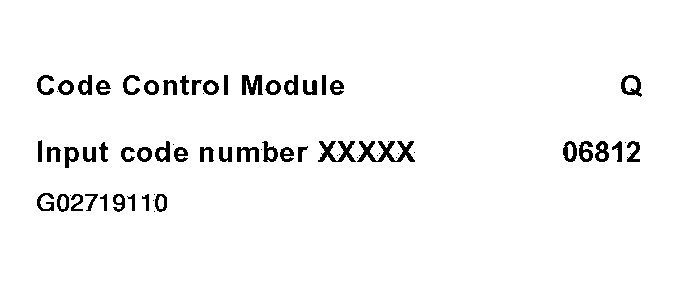

Indicated on display
- Input code number per coding table through m.y. 2001. See CODING TABLE - THROUGH M.Y. 2001 .
- Input code number per coding table from m.y. 2002. See CODING TABLE - FROM M.Y. 2002 .
Through m.y. 2001
Coding example: 00117
- Country identification: 0 = standard
- Sound coordination: 0 = standard
- Number of passive loudspeakers: 1 = 1 passive loud speaker, front left (Bose with telephone)
- Sound system: 1 = BOSE sound system
- Radio configuration: 7 = radio system with CD changer unit and secondary display
From m.y. 2002
Coding example: 02637
- Radio configuration 5: 0 = standard
- Radio configuration 4: 2 = A6
- Radio configuration 3: 6 = with BOSE and amplifier switch-off w/incoming phone call
- Radio configuration 2: 3 = with Navigation and Telephone
- Radio configuration 1: 7 = with diversity, CD changer and multi-function steering wheel
Indicated on display (the control module identification and the coding that was input, 02637)
- Press --> button to end coding.

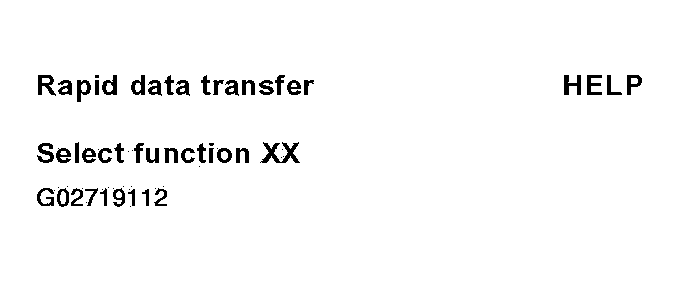

Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.

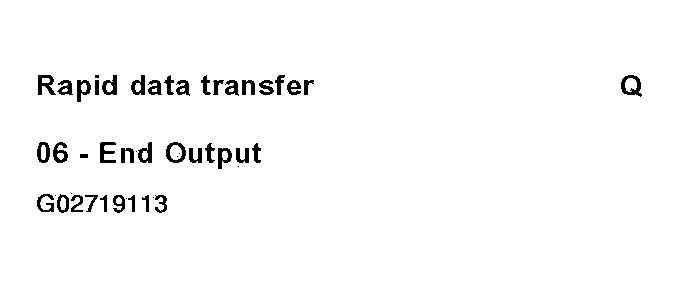

Indicated on display
- Press -Q- button to confirm input.
