2001 Audi A6 Avant QuattroFACTORY OEM SERVICE PROCEDURE

Check Control Module Versions (function 01)

  • Press buttons -0- and -1-.

Indicated on display:

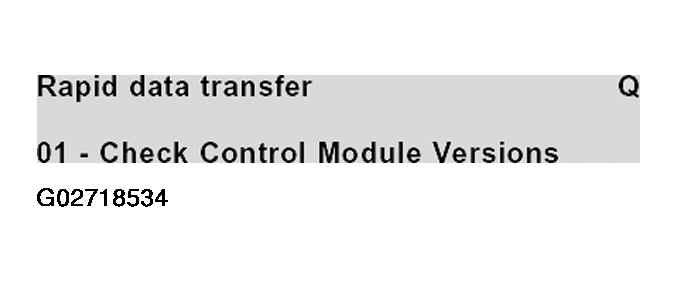

Fig 1: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (1 Of 6)
G02718534Courtesy of AUDI OF AMERICA, INC.
  • Confirm entry with -Q- button.
  • Indicated on display (vehicles with no anti-theft alarm):

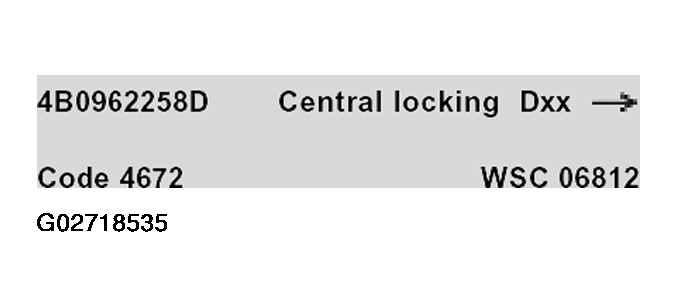

    Fig 2: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (2 Of 6)
    G02718535Courtesy of AUDI OF AMERICA, INC.
  • Indicated on display (vehicles with anti-theft alarm):

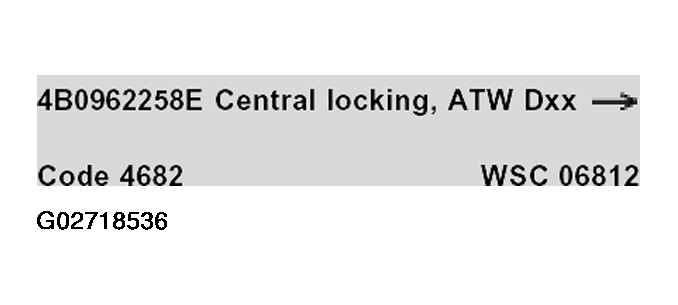

    Fig 3: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (3 Of 6)
    G02718536Courtesy of AUDI OF AMERICA, INC.

Explanatory notes on display:

  • 4B0962258D: Number of central locking control module
  • 4B0962258E: Number of central locking control module
  • Central locking: Component designation and version
  • Central locking, ATW: Component designation and version
  • Dxx: Software version
  • Code 4672: Coding. See CODE CONTROL MODULE (FUNCTION 07)  .
  • Code 4682: Coding. See CODE CONTROL MODULE (FUNCTION 07)  .
  • WSC 06812: Workshop code
  • Pressing --> button effects return to basic function.

Indicated on display:

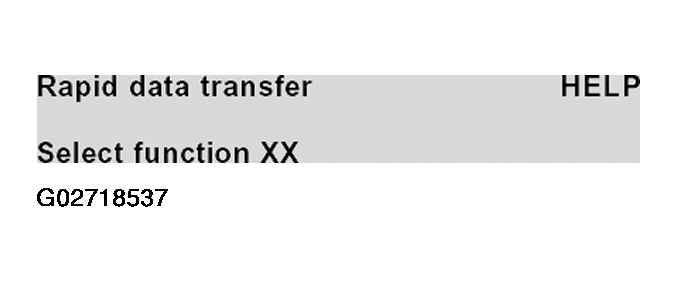

Fig 4: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (4 Of 6)
G02718537Courtesy of AUDI OF AMERICA, INC.
  • Press buttons -0- and -6- to end output.

Indicated on display:

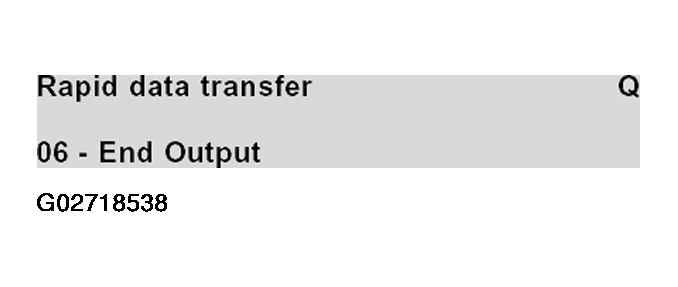

Fig 5: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (5 Of 6)
G02718538Courtesy of AUDI OF AMERICA, INC.
  • Confirm entry with -Q- button.

Indicated on display:

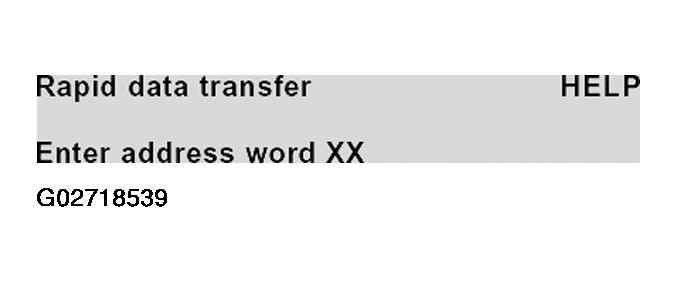

Fig 6: V.A.G 1551 Scan Tool (ST) Display - Central Locking System, Check Control Module Versions (Function 01) (6 Of 6)
G02718539Courtesy of AUDI OF AMERICA, INC.
  • Switch off ignition.
  • Disconnect connectors to V.A.G 1551 Scan Tool (ST).
