2000 Audi S4 AutomaticFACTORY OEM SERVICE PROCEDURE
Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| Alarm Horn | In rear of luggage compartment, behind trim. |
| Coolant Fan Control (FC) Series Resistance | On bottom of left front frame rail, in engine compartment. |
| Data Link Connector (DLC) | Under left side of dash. |
| Front Seat Belt Tensioner Ignitor (Left) | At bottom of left "B" pillar, behind trim panel. |
| Front Seat Belt Tensioner Ignitor (Right) | At bottom of right "B" pillar, behind trim panel. |
| Head-Level Air Bag Ignitor (Left) | On left "C" pillar, behind trim panel. |
| Head-Level Air Bag Ignitor (Right) | On right "C" pillar, behind trim panel. |
| Ignition Coil (4) (1.8L) | On top of cylinder head, beneath decorative cover. |
| Ignition Coil (6) (2.7L) | On top of respective cylinder head, beneath decorative cover. |

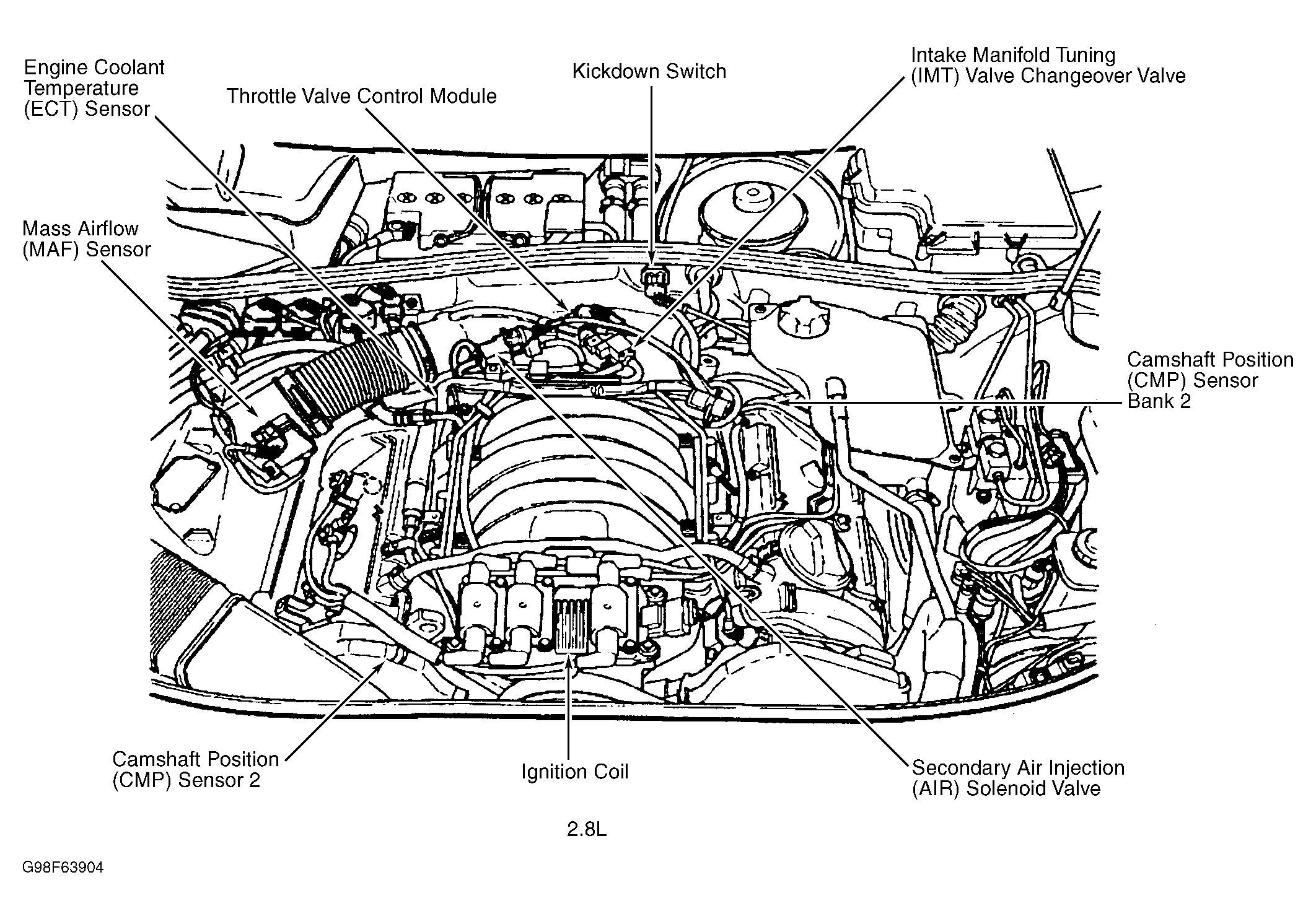

| Ignition Coil (2.8L) | On top front of engine. See Figure. |
| Left Connector Station | Under bottom of left "A" pillar trim. See Figure. |

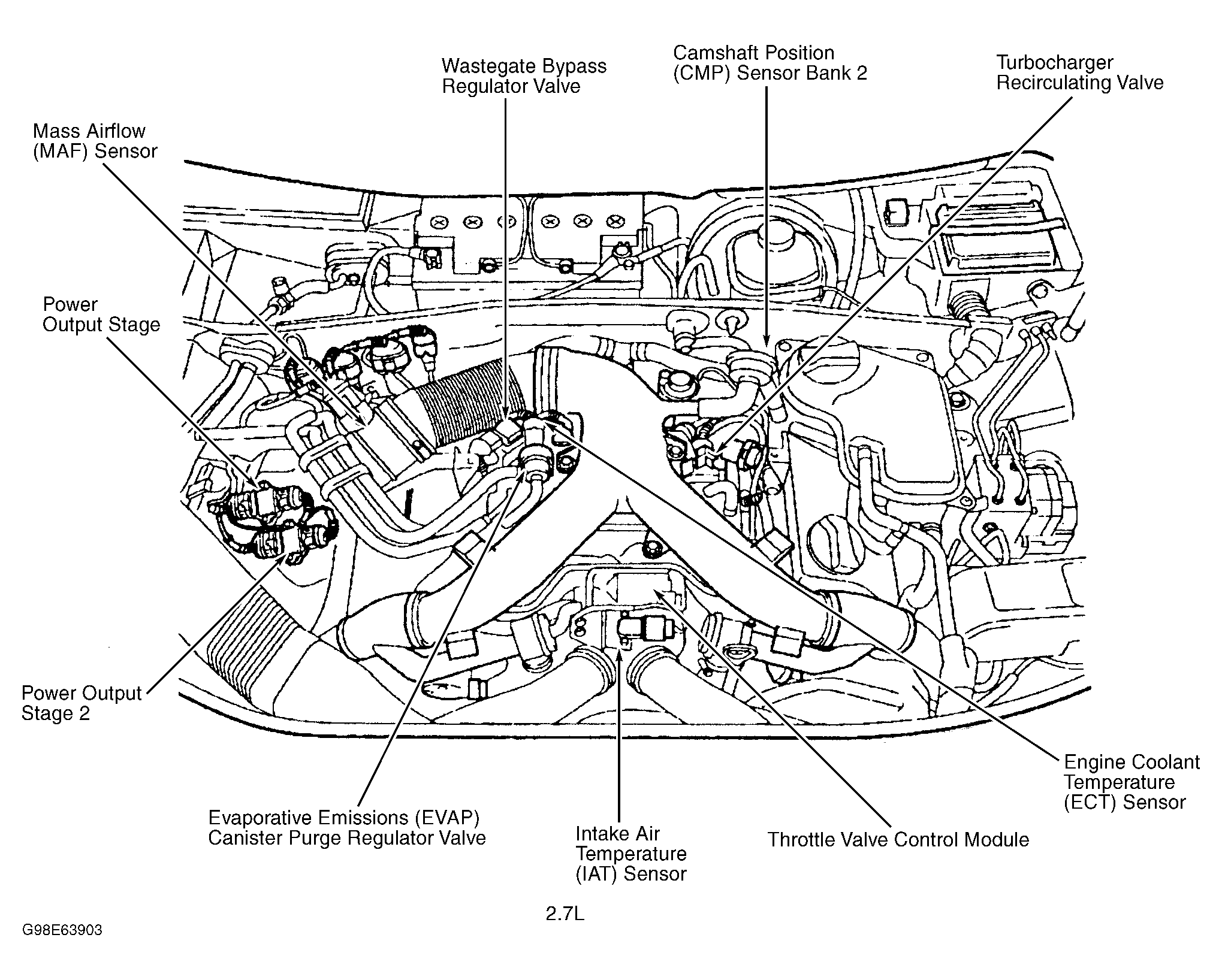

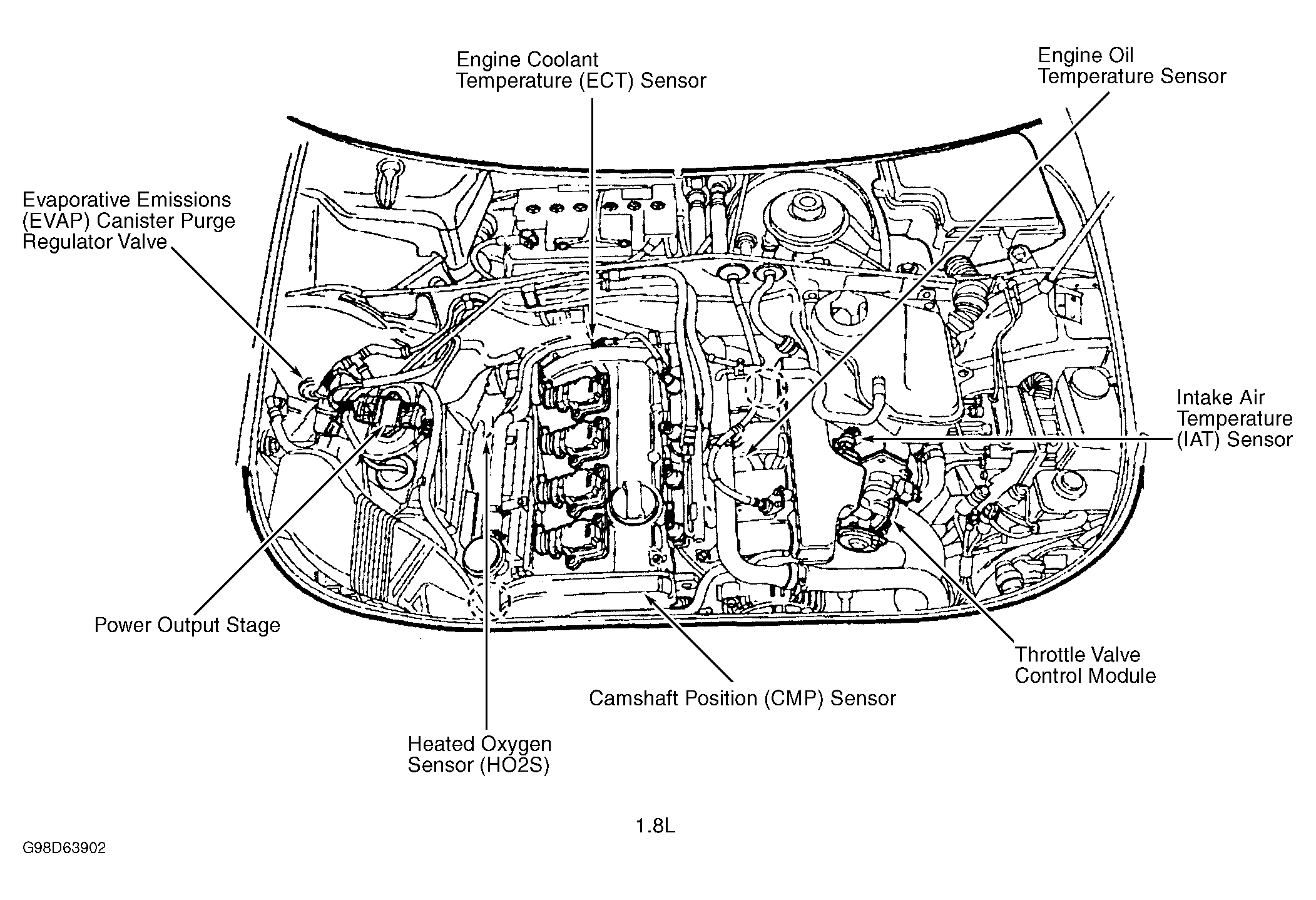

| Power Output Stage (1.8L) | On top of air cleaner housing. See Figure. |
| Power Output Stage (2.7L) | On top of air cleaner housing. See Figure. |
| Power Output Stage (2.8L) | Integral with ignition coil. |
| Power Output Stage 2 (2.7L) | On top of air cleaner housing, with brown connectors. See Figure. |
| Rear Seat Belt Tensioner Ignitor (Center) | Behind center rear seat back. |
| Rear Seat Belt Tensioner Ignitor (Left) | Behind left rear seat back, behind trim panel. |
| Rear Seat Belt Tensioner Ignitor (Right) | Behind right rear seat back, behind trim panel. |
| Right Connector Station | Under bottom of right "A" pillar trim. See Figure. |
