2000 Audi S4 AutomaticFACTORY OEM SERVICE PROCEDURE

Electrical Component Locator: Grounds

GROUNDS

Component	Component Location
G3	On right front of engine.

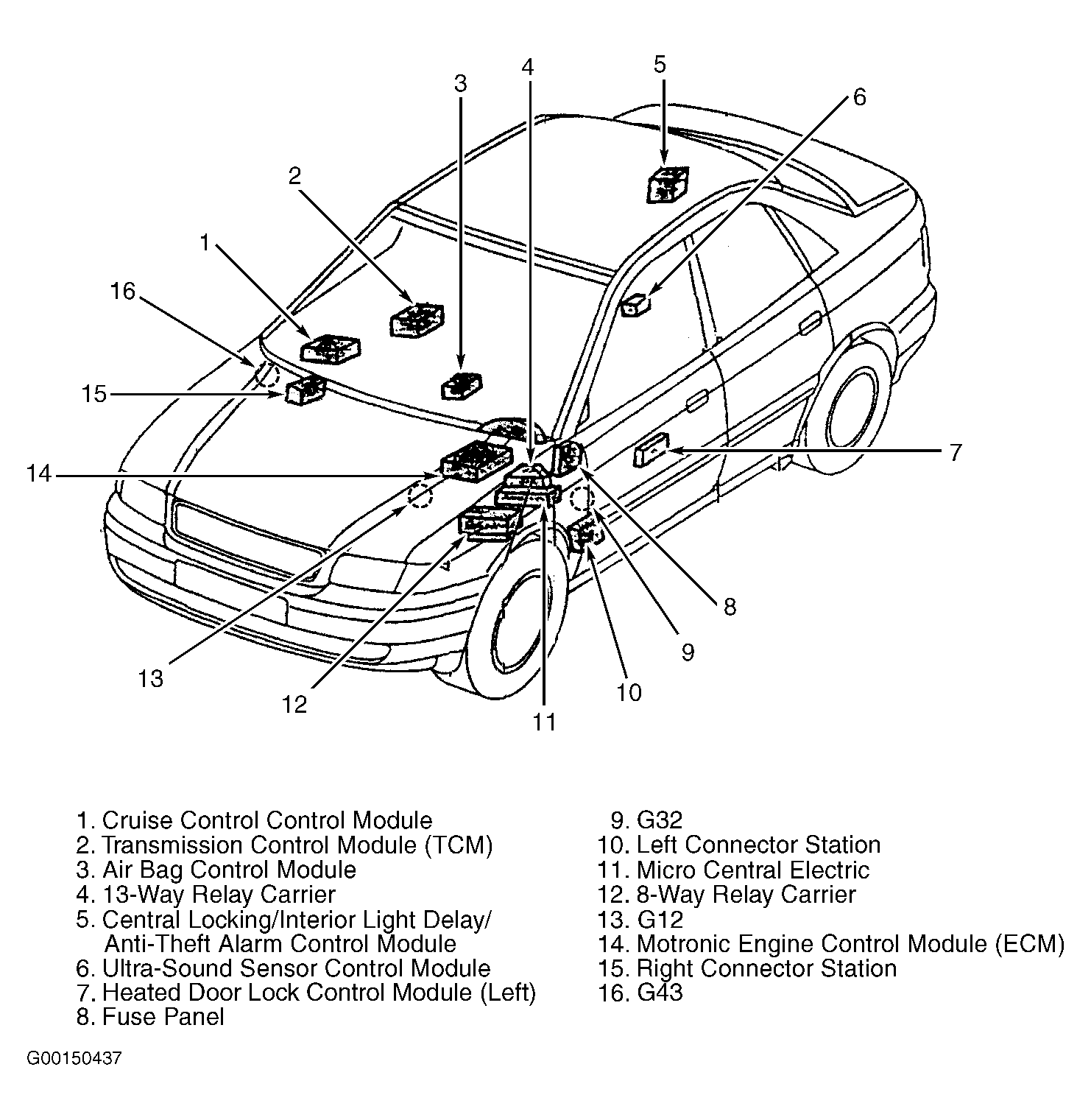

G12	At left rear of engine compartment. See Figure.
G18	On top front of engine.
G32	Above left kick panel. See Figure.
G43	Above right kick panel. See Figure.
