2000 Audi A6 BaseFACTORY OEM SERVICE PROCEDURE
Test sequence
- Connect VAS5051 tester or VAG1551 scan tool and select control module for engine electronics using "address word" 01. See VAS 5051 VEHICLE DIAGNOSTIC, TESTING AND INFORMATION SYSTEM OR VAG1551 SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTIONS
.
Engine must run at idle for this.
When indicated on display:
- Press buttons -0- and -8- to select "Read measuring value block" function 08. Press -Q- button to confirm input.
When indicated on display:

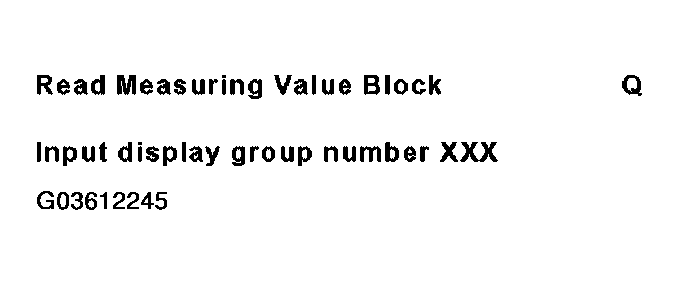

- Press buttons -0-, -1- and -4- to select "display group number 014" and press -Q- button to confirm input.
When indicated on display:

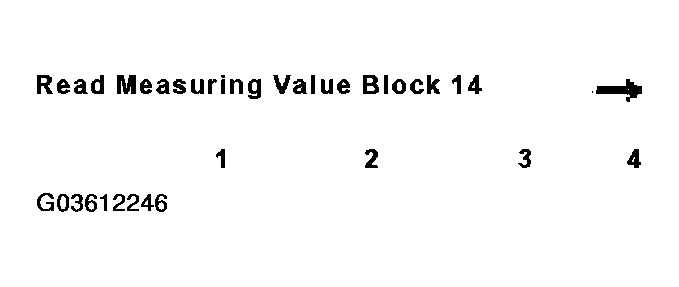

- Check misfire recognition in display fields 3 and 4.DISPLAY GROUP 014: MISFIRE RECOGNITION
Display fields 1 2 3 4 Display group 014: Misfire recognition Display xxxx/min xxx% xxx --- Indicated Engine speed (RPM) Load Number of combustion misfires Misfire recognition Functional range 670 to 6800 RPM 12 to 100% activated locked Specified value 720 to 820 RPM (1) 12 to 26% 0 to 12 activated 670 to 770 RPM (2) Notes If the specified value is exceeded: Check combustion misfires of the individual cylinders . See CHECKING MISFIRE RECOGNITION OF INDIVIDUAL CYLINDERS . (1) Front Wheel Drive Vehicles (2) All-Wheel Drive Vehicles
If specified value is obtained:
- Press -->button.

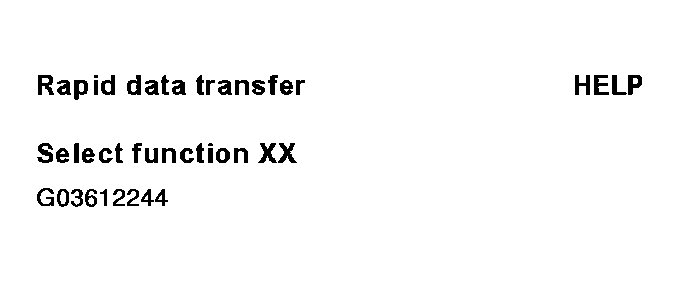

Indicated on display (function selection):
