Safety Lockout Switch: A4

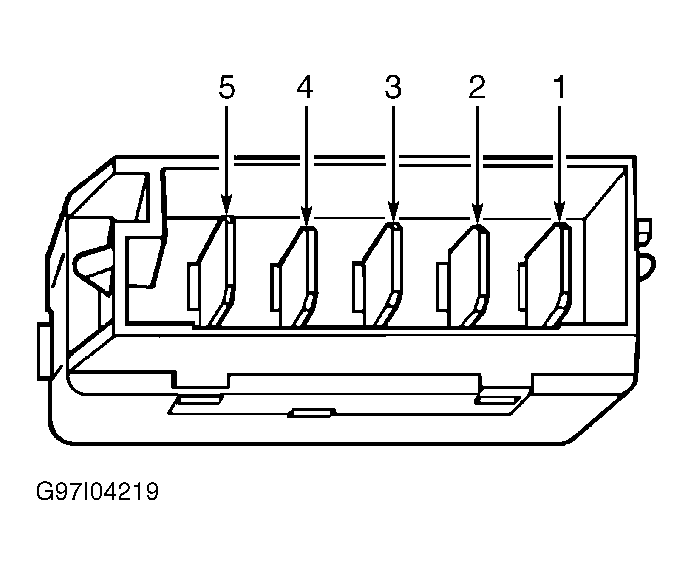

Remove safety lock-out switch and disconnect harness connector. Check continuity between switch terminals with switch in appropriate position. See SAFETY LOCK-OUT SWITCH TEST table. See Fig 1 . If continuity is not as specified, replace safety lock-out switch.
| Switch Position | Check Continuity Between Terminals No. | Specification |
|---|---|---|
| Off | 2 & 3 | No Continuity |
| On | 2 & 3 | Continuity |
