If vehicle coding information is not as specified:

Replace ECM.
NOTE:
- Vehicle information is "hard coded" into the ECM. Service coding of the ECM is not possible.
- Coding versions may be checked (only) using the VAG1551 or VAG1552 Scan Tool (ST).
- While checking coding versions, the 5-digit ECM code must always be displayed.
Connect VAG1551 or VAG1552 Scan Tool (ST) and press buttons -0- and -1- to insert "Engine Electronics" address word 01 (ignition switched on). See VAG1551 OR VAG1552 SCAN TOOL (ST), CONNECTING AND SELECTING "ENGINE ELECTRONICS" ADDRESS WORD 01 .

Indicated on display

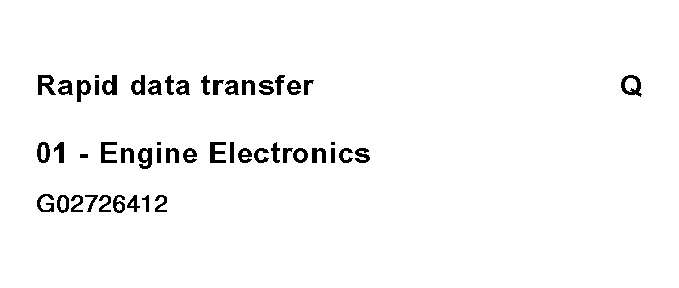

Fig 1: V.A.G 1551 Scan Tool Display - Checking Engine Control Module (ECM) Coding (1 Of 3)

Press -Q- button to confirm input.

Indicated on display (ECM identification and coding)

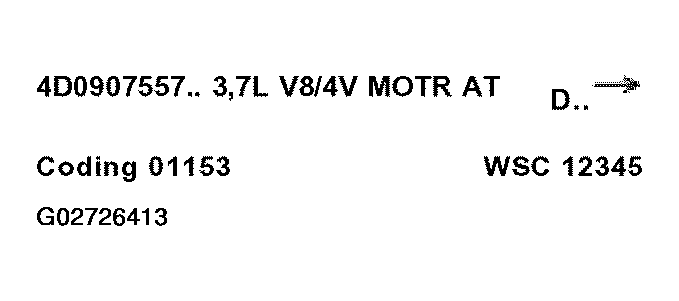

Fig 2: V.A.G 1551 Scan Tool Display - Checking Engine Control Module (ECM) Coding (2 Of 3)

ECM CODING AND MODEL

Coding	Model
01273	A8 4.2 liter, engine code ABZ
01153	A8 3.7 liter, engine code AEW

Indicated on display

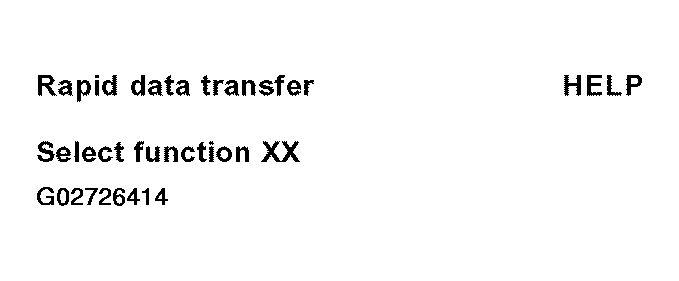

Fig 3: V.A.G 1551 Scan Tool Display - Checking Engine Control Module (ECM) Coding (3 Of 3)

Press buttons -0- and -6- to select "End Output" (scan tool function 06), and press -Q- button to confirm input.
