1999 Audi A8 QuattroFACTORY OEM SERVICE PROCEDURE

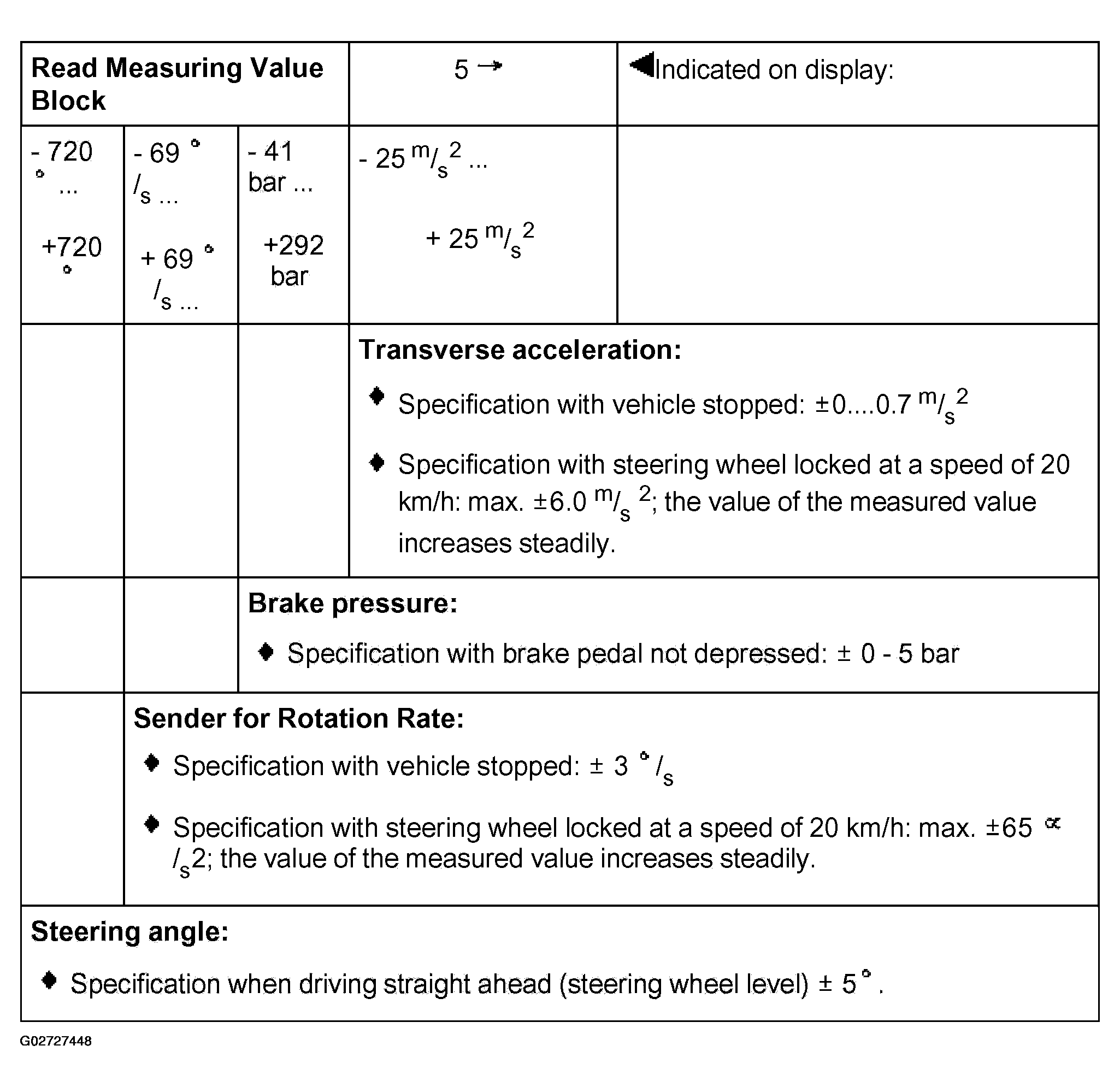

Test table: display group 5 (005)
- For another check of the sensor, see Fig 2 .
NOTE:
OBD is terminated by ABS Control Module (w/EDL) -J104- if road speed exceeds 19 km/h (12 MPH).
- If nothing is displayed, press -C- button, select function 02 and check DTC memory. Repair the malfunction with the help of the DTC table. See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY (SCAN TOOL FUNCTION 02), CHECKING .
NOTE:
Sensor for transverse acceleration -G200- is very sensitive to shocks. If sensor is dropped, do not reinstall it in vehicle. Instead, use a new sensor.
