Login procedure (scan tool function 11): Notes
See Operating manual for VAG1551 scan tool, information about OBD

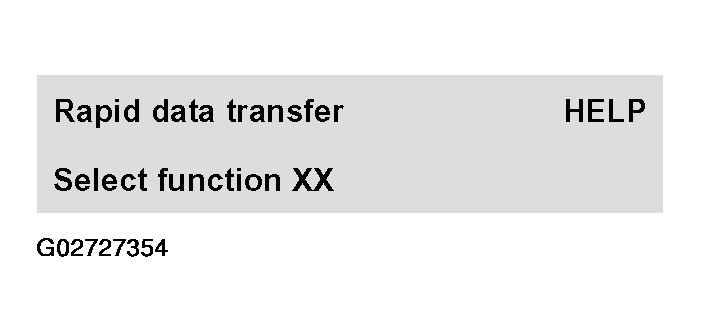

Indicated on display

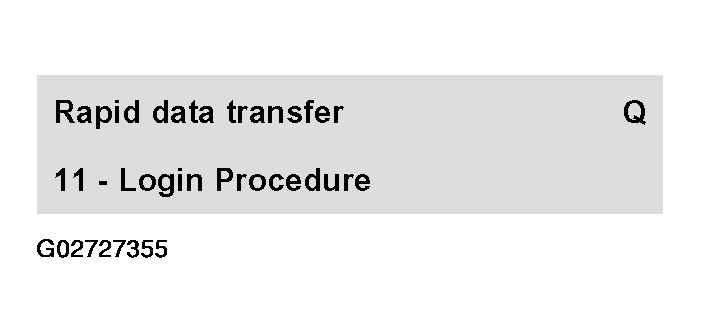

- Press buttons -1- and -1- to select "Login Procedure" function 11.
Indicated on display
- Press the -Q- button to confirm input.
Indicated on display

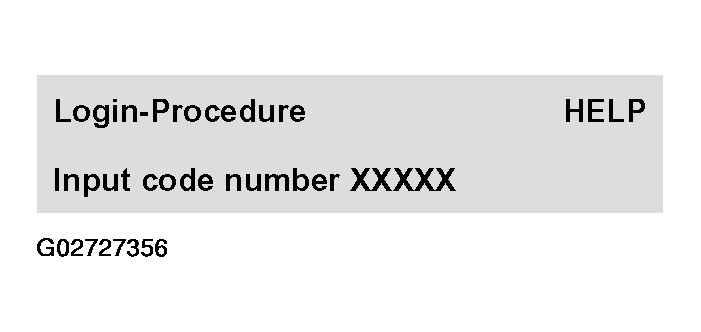

- Enter the relevant code for the vehicle and press -Q- button to confirm input.
- The code for logging in for zeroing of steering angle sensor -G85- is 40168.
- For the codes for logging in to code the ABS Control Module (w/EDL) -J104-, see TEST SEQUENCE .
