1999 Audi A8 BaseFACTORY OEM SERVICE PROCEDURE
Central locking system, assembly overview: Notes
NOTE:

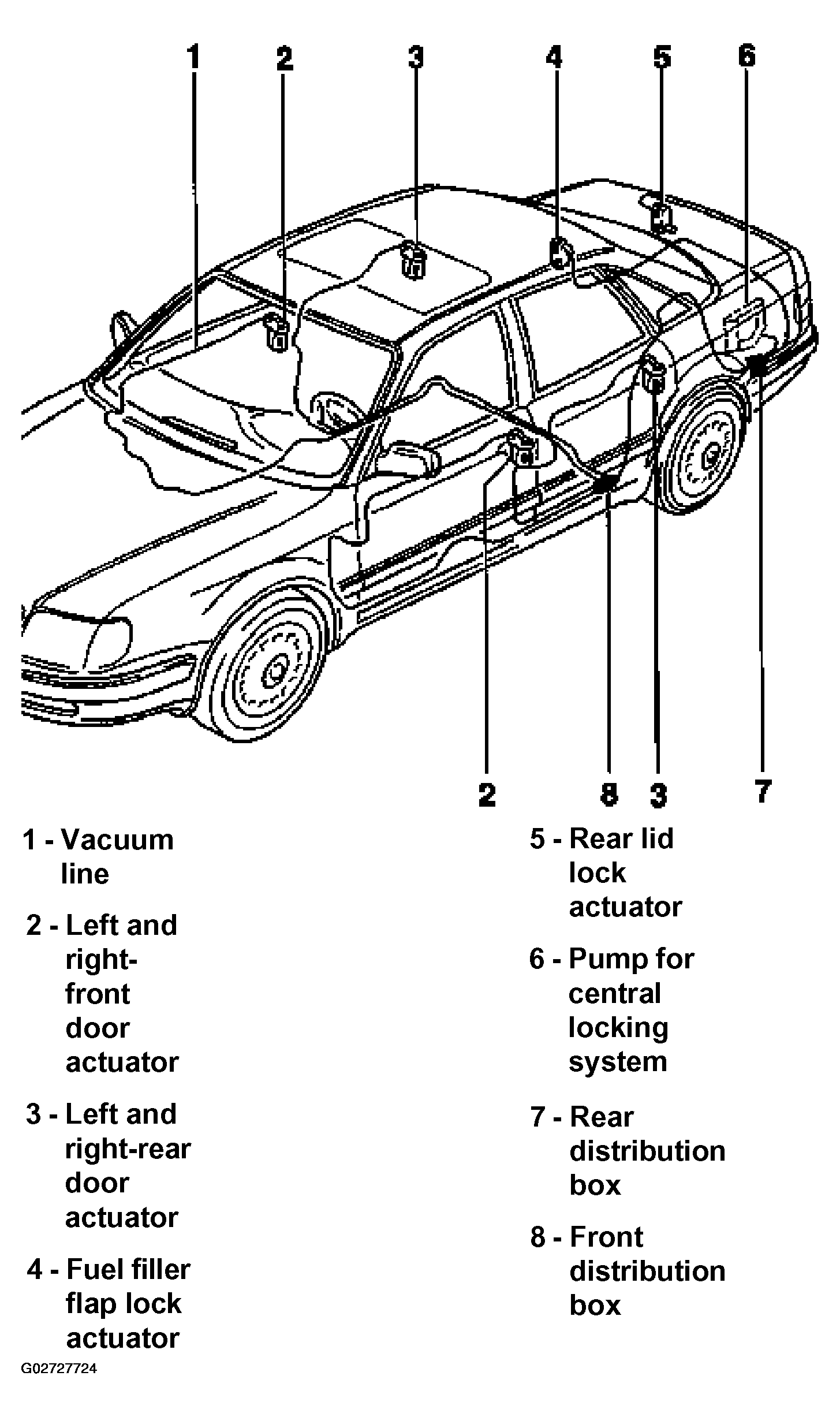

The following list refers to Fig 1
.
- Vacuum line
- Left and right-front door actuator
- Removing and installing. See REMOVING AND INSTALLING FRONT DOOR LOCK ACTUATOR .
- Disengaging Bowden cable for interior door mechanism. See REMOVING AND INSTALLING BOWDEN CABLE FOR INSIDE DOOR MECHANISM .
- Left and right-rear door actuator
- Removing and installing. See REMOVING AND INSTALLING LOCK ACTUATOR FOR REAR DOOR .
- Disengaging Bowden cable for interior door mechanism. See REMOVING AND INSTALLING BOWDEN CABLE FOR INSIDE DOOR MECHANISM .
- Fuel filler flap lock actuator
- Removing and installing. See REMOVING AND INSTALLING FUEL FILLER FLAP LOCK ACTUATOR .
- Rear lid lock actuator
- Removing and installing. See REMOVING AND INSTALLING REAR LID LOCK ACTUATOR .
- Vacuum line routing. See VACUUM LINE ROUTING IN REAR LID .
- Pump for central locking system
- Removing and installing. See REMOVING AND INSTALLING PUMP FOR CENTRAL LOCKING SYSTEM .
- Rear distribution box
- Securely attached to vacuum lines, with exception of rear lid line
- Allows for disconnection of vacuum line connector to rear lid. See DISCONNECTING VACUUM LINES .
- Front distribution box
- Securely attached to vacuum lines, with exception of rear distribution box
- Allows for disconnection of vacuum line connector to rear lid. See DISCONNECTING VACUUM LINES .
