Selecting functions: Notes
After establishing the data link, checking the control module version, and pressing the --> button:

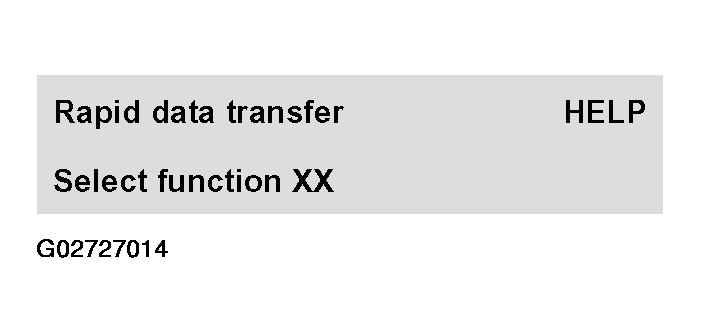

Indicated on display (function selection, example 02 "Check DTC Memory"):
You can now select one of the functions listed below. Start the troubleshooting procedure using the "Check DTC Memory" function 02.
- Check Control Module Versions
- Check DTC Memory
- Output Diagnostic Test Mode
- Basic Setting
- Erase DTC Memory
- End Output
- Code Control Module
- Read Measuring Value Block
- Read Individual Measuring Value
- Adaptation
- Login Procedure
Comprehensive descriptions of how to use the functions "Erase DTC Memory" and "End Output" are found in the next section.
Descriptions of how to use the other functions are found in the relevant sections of this Repair Manual.
When a function has been completed, press the --> button to return to the beginning of the troubleshooting procedure ("Select function XX").
