1999 Audi A8 BaseFACTORY OEM SERVICE PROCEDURE

Diagnostic Trouble Code (DTC) Memory, checking (function 02): Notes

Connect VAG 1551 Scan Tool, insert address word 08 "AC/Heating Electronics" and move forward in program until "Select function XX" is displayed. See VAG 1551 ((VAG 1552) SCAN TOOL (ST), CONNECTING AND SELECTING FUNCTIONS .
Switch printer on by pressing the PRINT button (indicator lamp in button comes on).

Indicated on display (function selection):

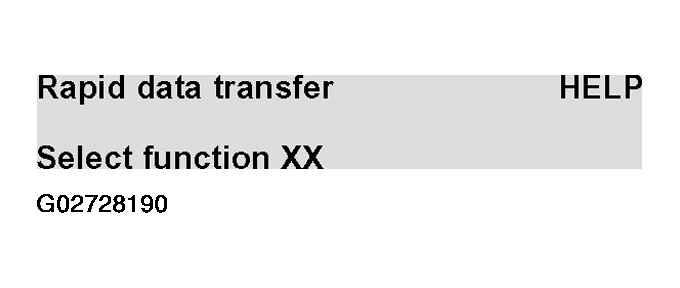

Fig 1: VAG 1551 Scan Tool - Checking Diagnostic Trouble Code Memory (1 Of 5)

G02728190

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -2- (function "Check DTC Memory" is entered with 02).

Indicated on display

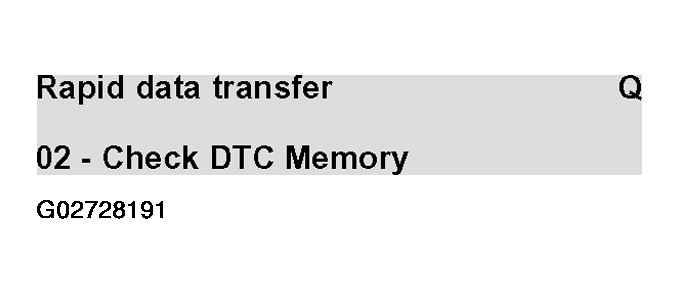

Fig 2: VAG 1551 Scan Tool - Checking Diagnostic Trouble Code Memory (2 Of 5)

G02728191

Courtesy of AUDI OF AMERICA, INC.

Press -Q- button to confirm input.

Number of stored DTCs or "No DTC recognized" is displayed

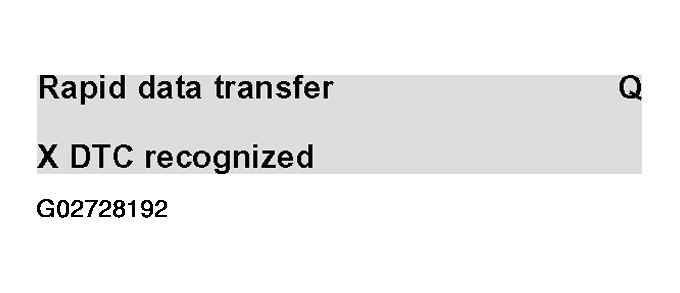

Fig 3: VAG 1551 Scan Tool - Checking Diagnostic Trouble Code Memory (3 Of 5)

G02728192

Courtesy of AUDI OF AMERICA, INC.

Press => button.

Stored DTCs are displayed and printed one after the other

If "No DTC recognized" is displayed, program returns to the starting position after --> button is pressed.

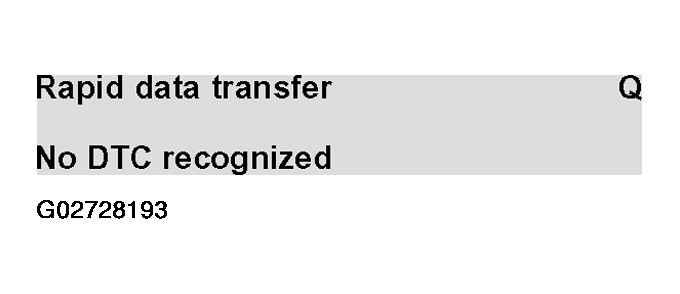

Fig 4: VAG 1551 Scan Tool - Checking Diagnostic Trouble Code Memory (4 Of 5)

G02728193

Courtesy of AUDI OF AMERICA, INC.

Indicated on display (function selection):

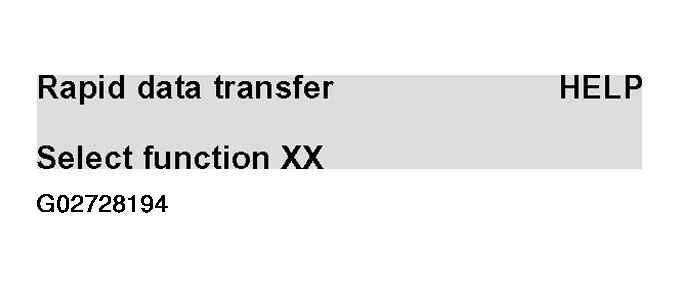

Fig 5: VAG 1551 Scan Tool - Checking Diagnostic Trouble Code Memory (5 Of 5)

G02728194

Courtesy of AUDI OF AMERICA, INC.

End output (function 06). See DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, ERASING (FUNCTION 05) .
Switch ignition off and unplug Data Link Connector (DLC).
