1997 Audi CabrioletFACTORY OEM SERVICE PROCEDURE
Connector Identification
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See Figure | |
|---|---|---|

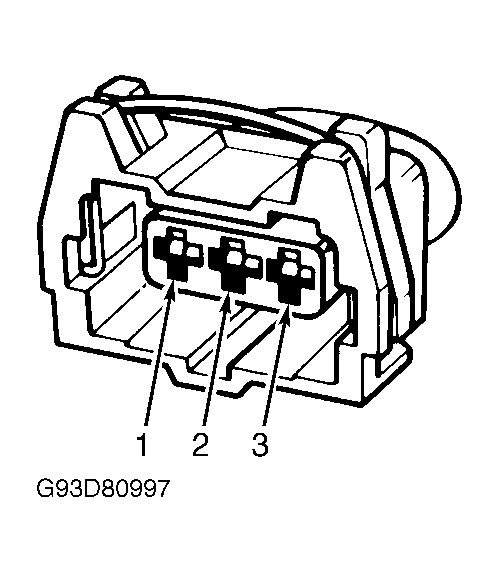

| Camshaft Position Sensor Connector Terminals | Fig 1 | |
| ECT Sensor Connector Terminals | Fig 2 | |
| ECT Sensor Terminals | Fig 3 | |
| EGR Temperature Sensor Connector Terminals | Fig 4 | |
| EGR Vacuum Regulator Solenoid Valve Connector | ||
| (Harness Side) Terminals | Fig 4 | |
| Engine Speed Sensor Connector (Harness Side) Terminals | Fig 5 | |
| Engine Speed Sensor Connector (Sensor Side) Terminals | Fig 1 | |
| EVAP Canister Purge Valve Harness Connector Terminals | Fig 4 | |
| EVAP Differential Pressure Sensor Connector | ||
| (Harness Side) Terminals | Fig 1 | |
| EVAP Leak Detection Pump (Component Side) | Fig 6 | |
| EVAP Leak Detection Pump (Harness Side) | Fig 7 | |
| Fuel Injector Harness Connector | Fig 4 | |
| HO2S Black 2-Pin Heater Connector | Fig 4 | |
| HO2S Connector (Harness Side) Terminals | Fig 7 | |
| HO2S Connector (Sensor Side) Terminals | Fig 8 | |
| IAC Valve Connector Terminals | Fig 9 | |
| Ignition Coil Power Output Stage 3-Pin Connector | ||
| (Harness Side) Terminals | Fig 1 | |
| Ignition Coil Power Output Stage 4-Pin Connector | ||
| (Harness Side) Terminals | Fig 10 | |
| Intake Manifold Change-Over Valve Connector Terminals | Fig 4 | |
| Knock Sensor Connector (Harness Side) Terminals | Fig 1 | |
| Knock Sensor Connector (Sensor Side) Terminals | Fig 5 | |
| MAF Sensor Connector Terminals | Fig 1 | |
| Secondary Air Injection Solenoid Valve Harness Connector | Fig 4 | |
| TP Sensor Connector Terminals | Fig 12 | |
| TP Sensor Terminals | Fig 13 | |
