2022 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE

Driving Position Memory System (DPMS) Component Location Index

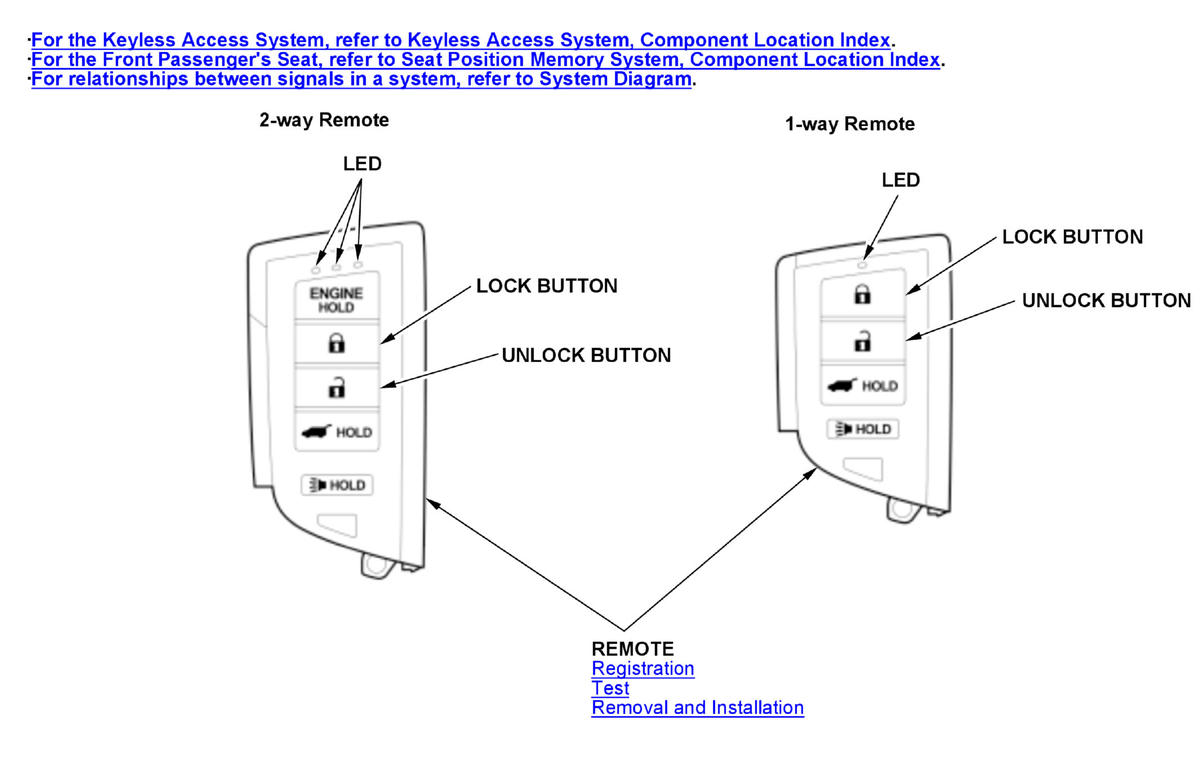

GHH522021

Courtesy of HONDA, U.S.A., INC.

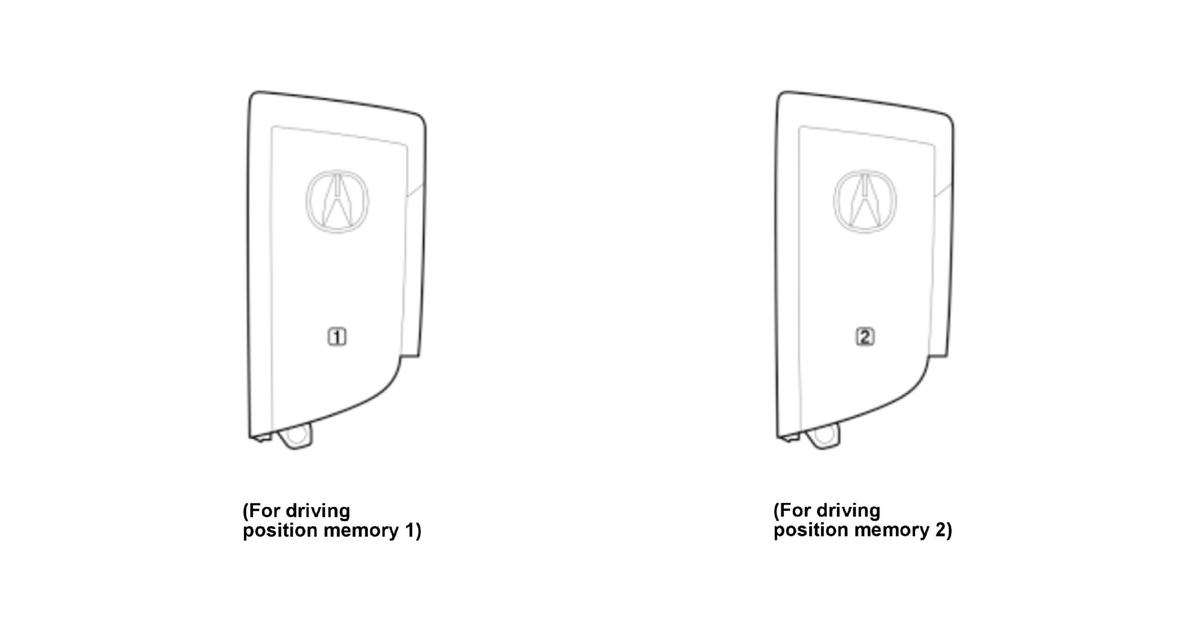

GHH522022

Courtesy of HONDA, U.S.A., INC.

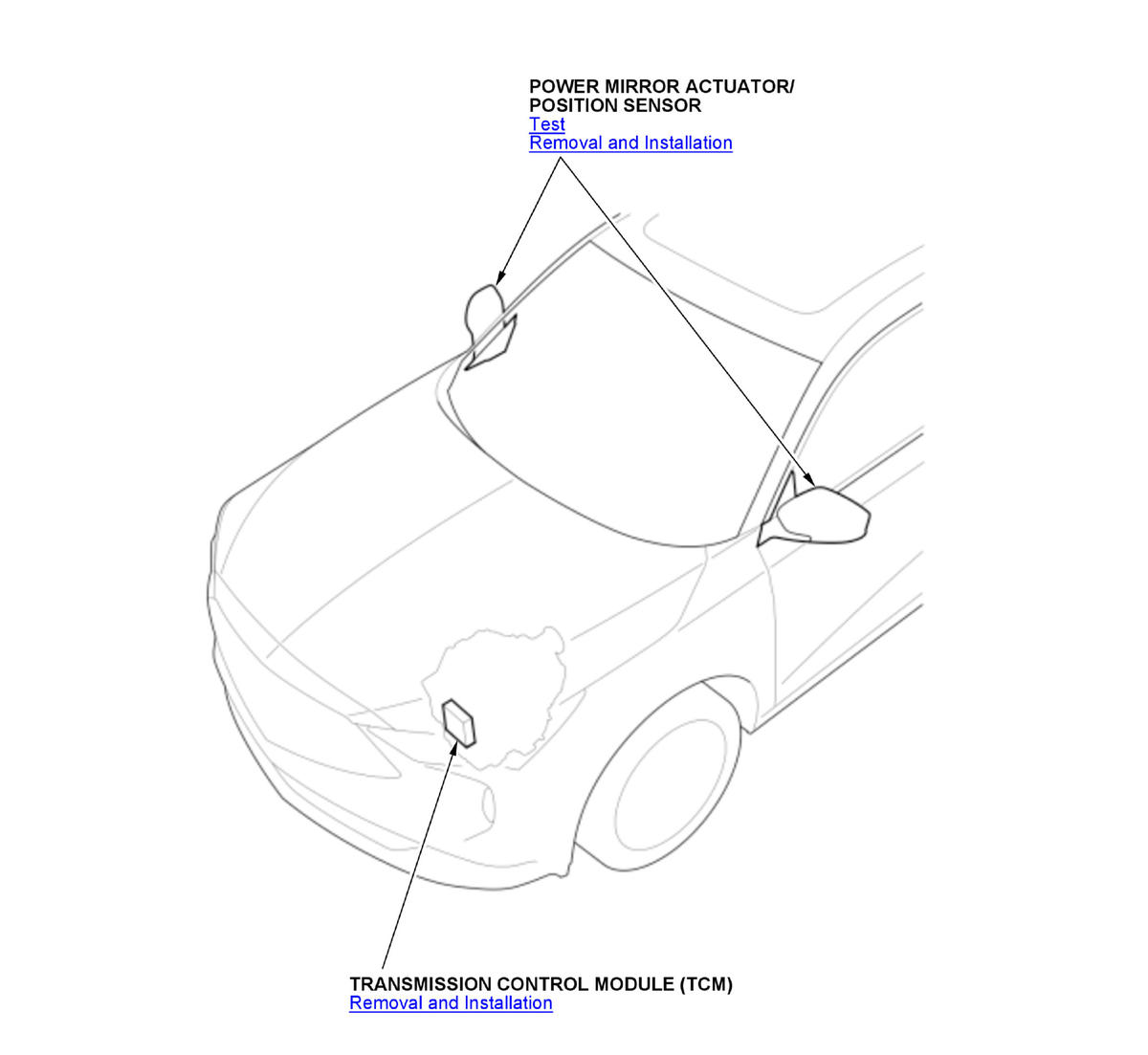

GHH522023

Courtesy of HONDA, U.S.A., INC.

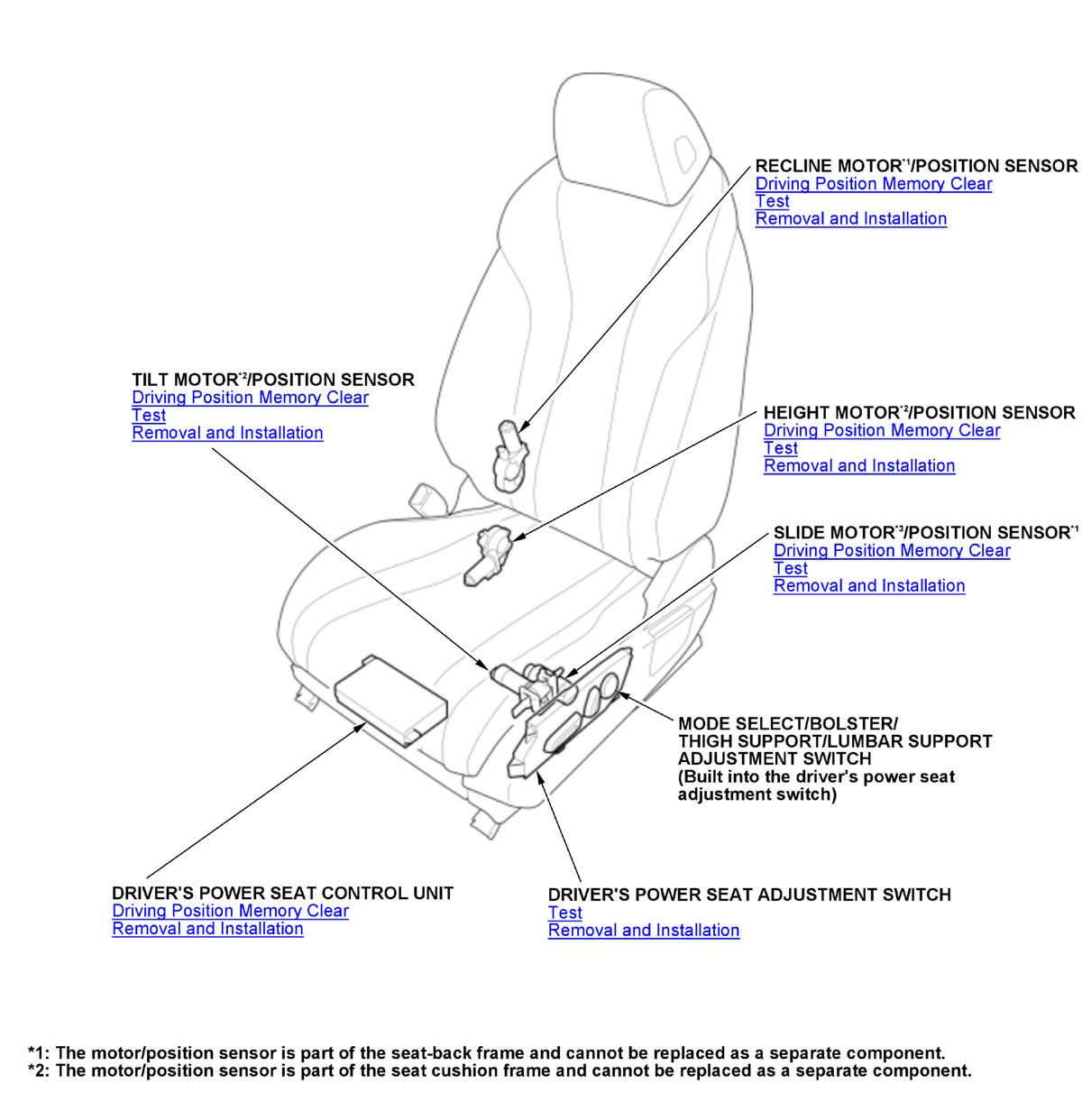

GHH522024

Courtesy of HONDA, U.S.A., INC.

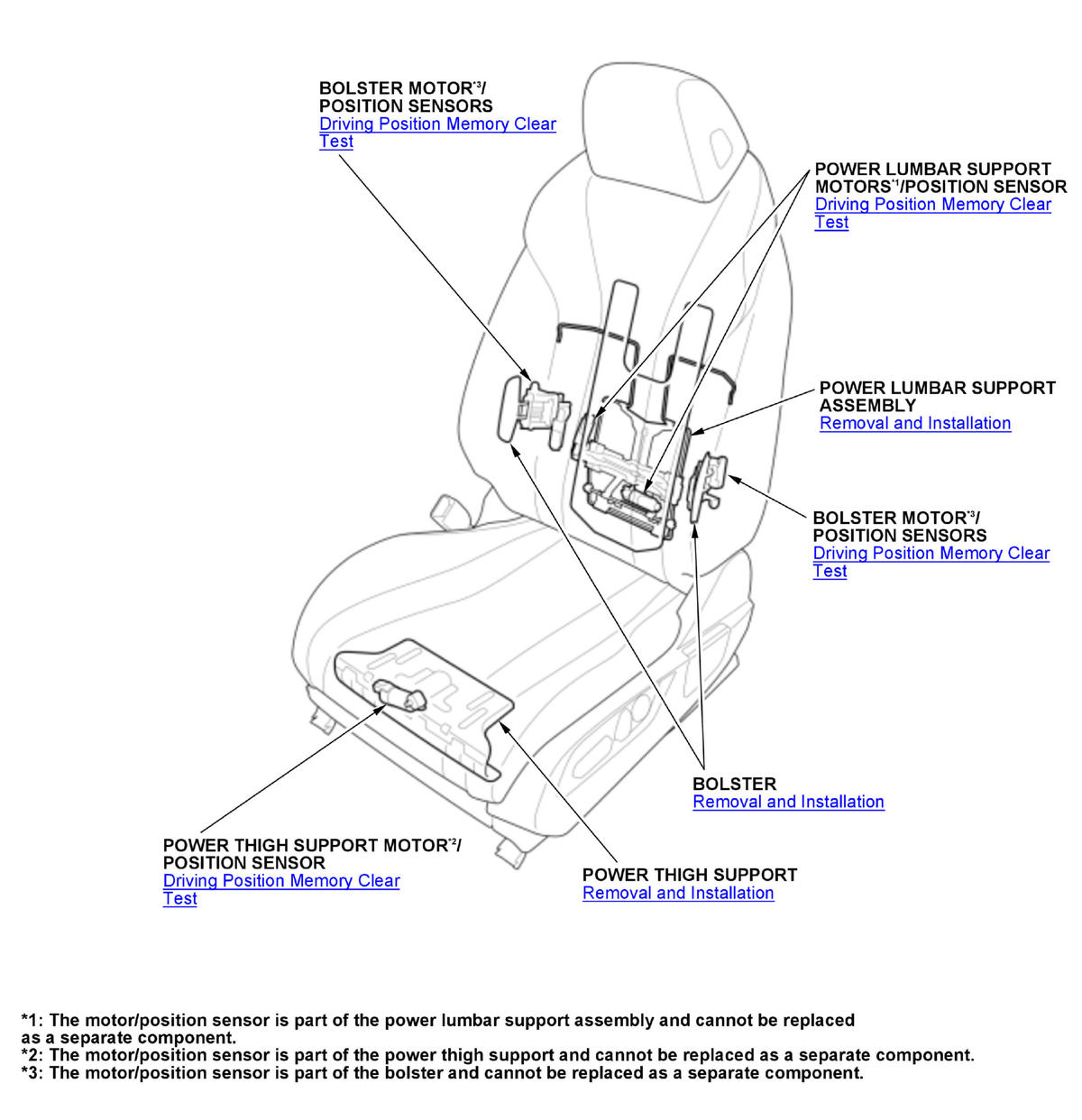

GHH522025

Courtesy of HONDA, U.S.A., INC.

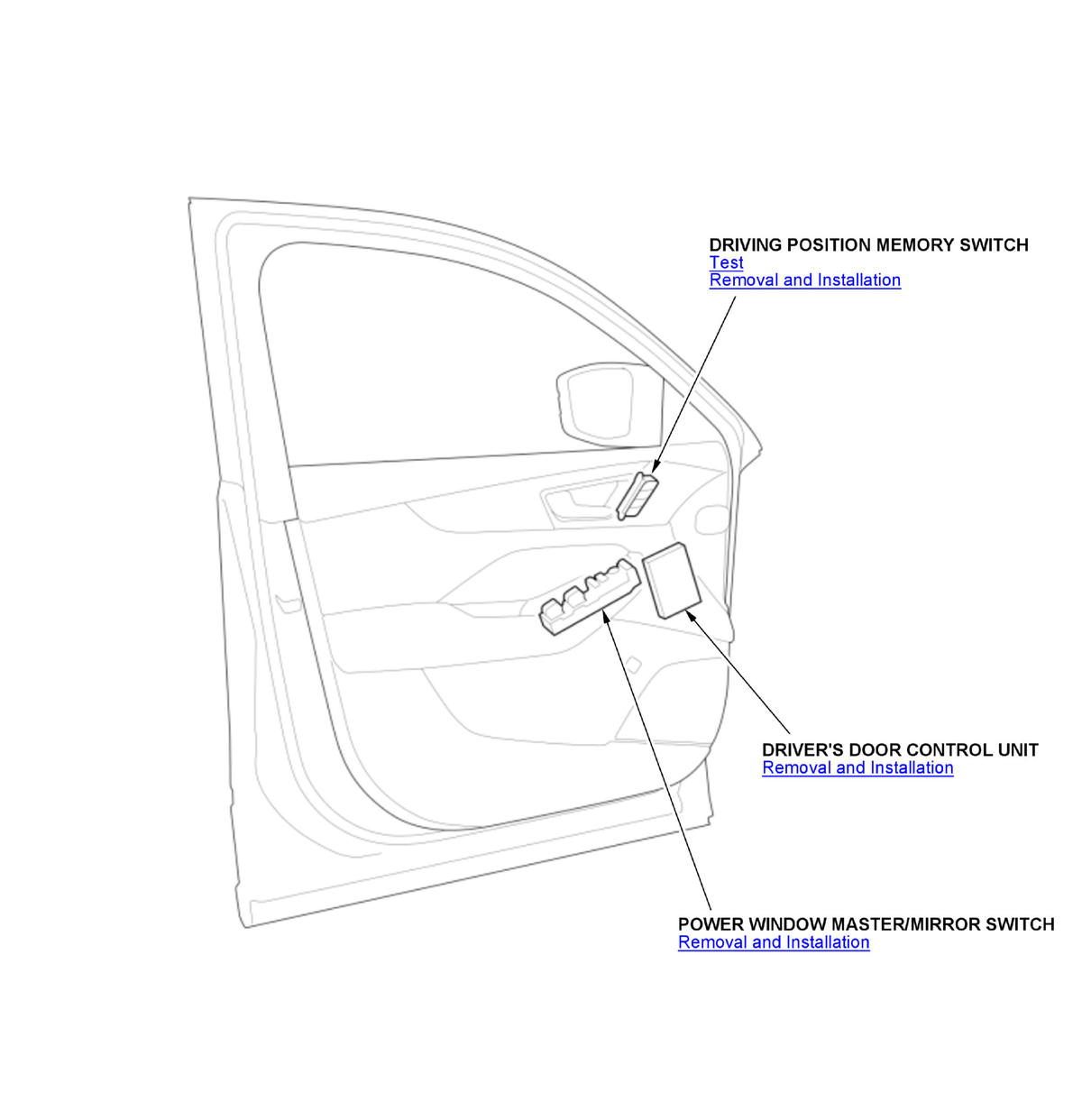

GHH522026

Courtesy of HONDA, U.S.A., INC.

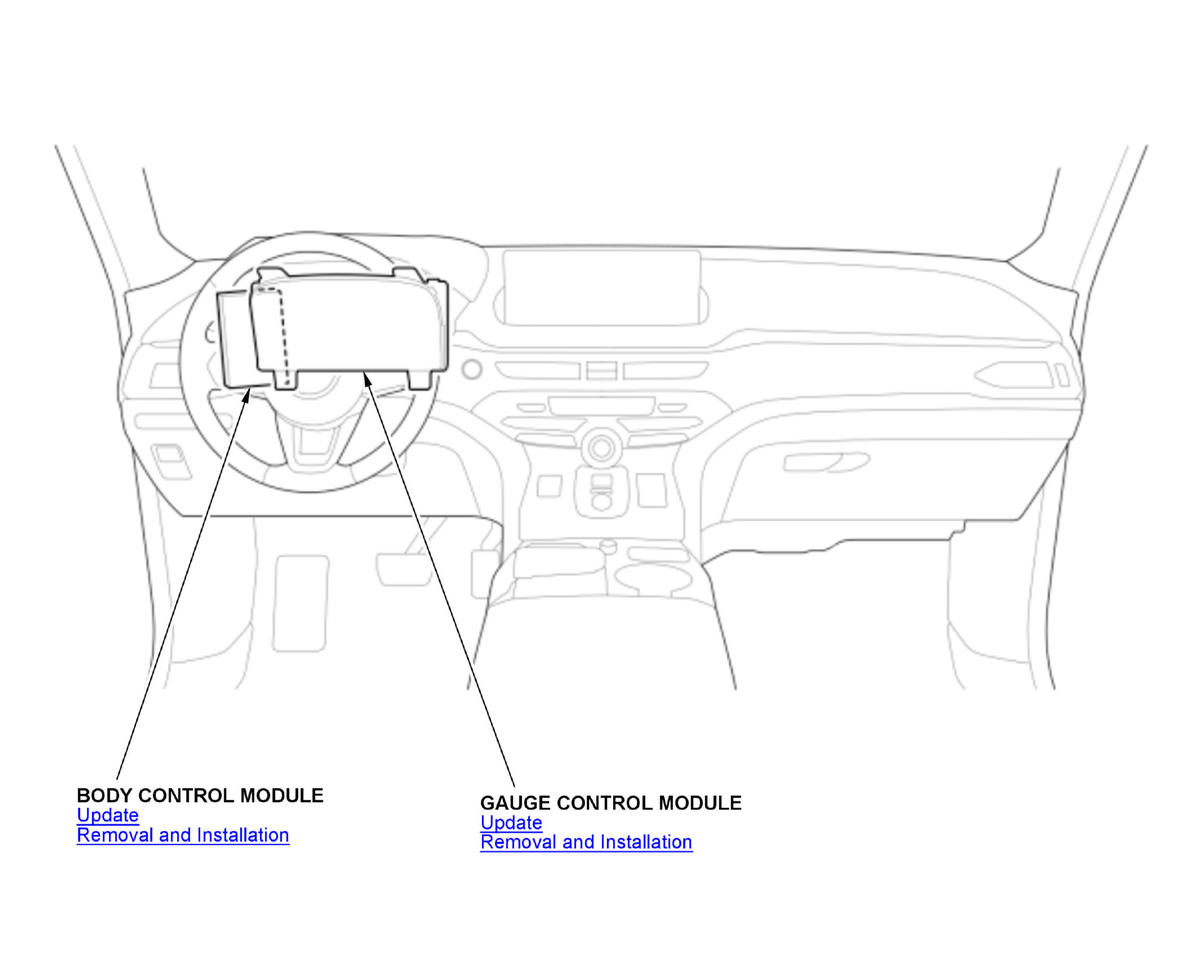

GHH522027

Courtesy of HONDA, U.S.A., INC.
